TC7SB3157DL6X,L
IC MUX/DEMUX 1 X 2:1 6MP6DManufacturer: Toshiba Semiconductor and Storage
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More

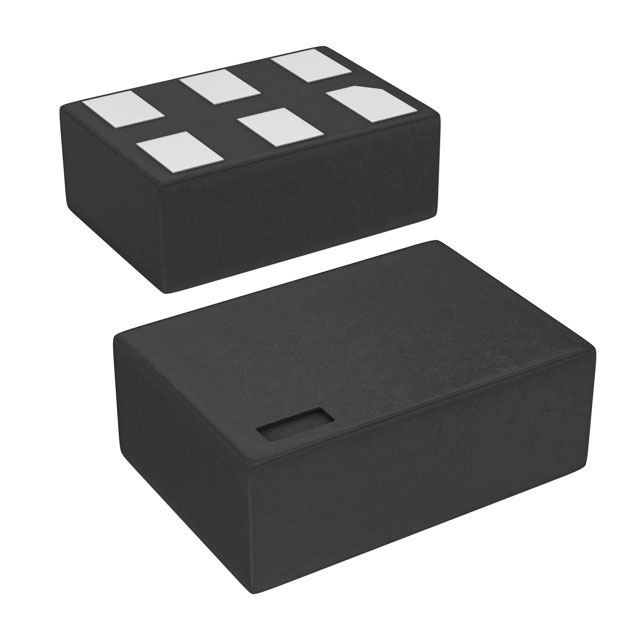

Toshiba Semiconductor and Storage TC7SB series TC7SB3157DL6X-L is a single pole, double throw (SPDT) analog multiplexer/demultiplexer. This device features one independent 1 x 2:1 circuit, enabling efficient signal routing. Operating from a single supply voltage range of 1.65V to 5.5V, it is designed for versatility across various applications. The TC7SB3157DL6X-L is housed in a compact 6-MP6D (1.45x1) package, suitable for surface mount assembly. Its operating temperature range of -40°C to 85°C makes it robust for demanding environments. This component finds utility in consumer electronics, industrial automation, and communication systems where efficient signal switching is critical.
Additional Information
Series: TC7SBRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN |
| Mounting Type | Surface Mount |
| Circuit | 1 x 2:1 |
| Type | Multiplexer/Demultiplexer |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 6-MP6D (1.45x1) |
