TC7WH32FK,LJ(CT

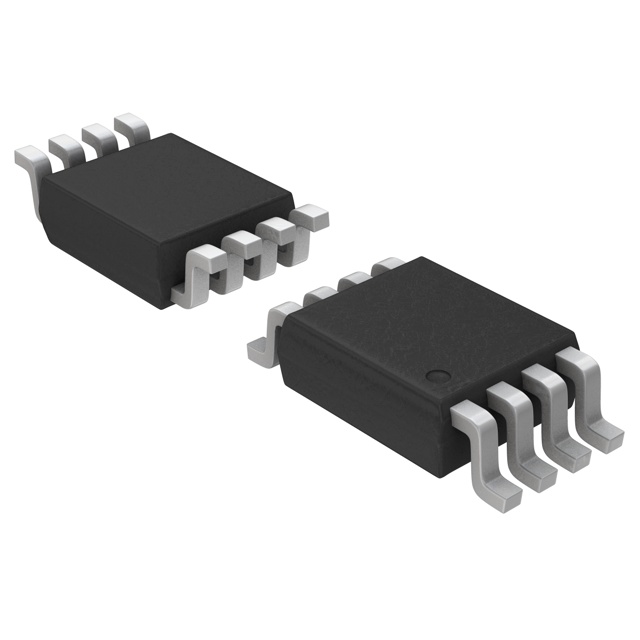

IC GATE OR 2CH 2-INP US8Manufacturer: Toshiba Semiconductor and Storage
Categories: Gates and Inverters
Quality Control: Learn More
Toshiba Semiconductor and Storage TC7WH32FK-LJ-CT is a dual 2-input OR gate from the TC7WH series. This advanced logic IC offers 2 channels, each with two inputs, and is housed in an 8-VFSOP (US8) surface-mount package. Designed for efficient operation, it features a quiescent current of only 2 µA and supports a wide supply voltage range from 2V to 5.5V. The output drive capability is 8mA for both high and low states. Maximum propagation delay is rated at 7.5ns at 5V with a 50pF load capacitance. The TC7WH32FK-LJ-CT is suitable for applications in consumer electronics, industrial automation, and telecommunications. It is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: TC7WHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFSOP (0.091"", 2.30mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | OR Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | US8 |
| Input Logic Level - High | - |
| Input Logic Level - Low | - |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 2 µA |
