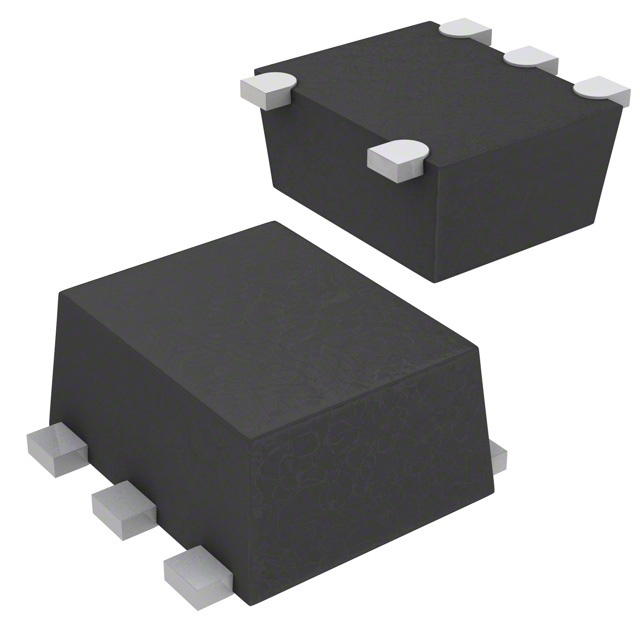

TC7SH86FU,LJ(CT
IC GATE XOR 1CH 2-INP 5SSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Gates and Inverters
Quality Control: Learn More
XOR (Exclusive OR) IC 1 Channel 5-SSOP
Additional Information
Series: TC7SHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Logic Type | XOR (Exclusive OR) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 5-SSOP |
| Input Logic Level - High | 1.5V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 8.8ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 2 µA |
Request a Quote
