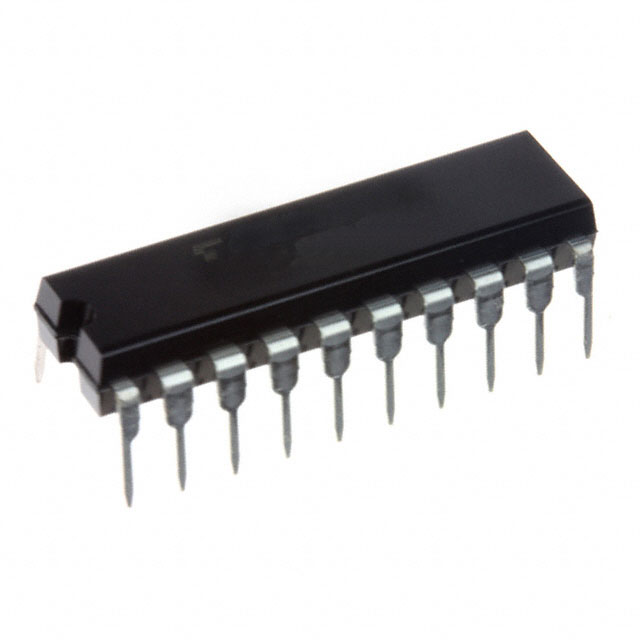

TC74ACT374P
IC FF D-TYPE SNGL 8BIT 20DIPManufacturer: Toshiba Semiconductor and Storage
Categories: Flip Flops
Quality Control: Learn More
Toshiba Semiconductor and Storage TC74ACT374P is an 8-bit, single-element D-type flip flop from the 74ACT series. This device features positive edge triggering and provides tri-state, non-inverted outputs with high and low drive capabilities of 75mA. Designed for through-hole mounting in a 20-DIP (0.300", 7.62mm) package, it operates over a voltage supply range of 4.5V to 5.5V. The component exhibits a maximum clock frequency of 160 MHz and a typical propagation delay of 9.6ns at 5V with a 50pF load. Quiescent current is a low 8 µA, with input capacitance rated at 5 pF. This component finds application in various digital logic and data storage systems, including industrial controls and consumer electronics.
Additional Information
Series: 74ACTRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA |
| Current - Output High, Low | 75mA, 75mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 160 MHz |
| Input Capacitance | 5 pF |
| Supplier Device Package | 20-DIP |
| Max Propagation Delay @ V, Max CL | 9.6ns @ 5V, 50pF |
| Number of Bits per Element | 8 |
