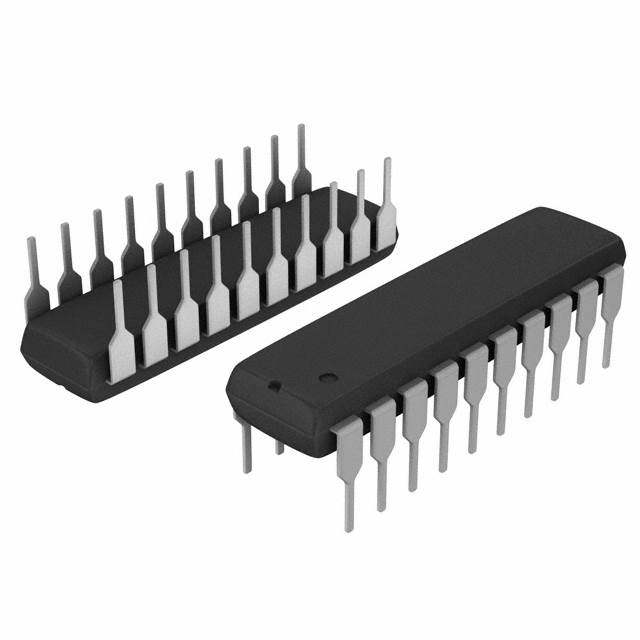

TC74ACT244PF
IC BUFF NON-INVERT 5.5V 20DIPManufacturer: Toshiba Semiconductor and Storage
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Toshiba Semiconductor and Storage's 74ACT series TC74ACT244PF is a high-speed CMOS buffer featuring two independent 4-bit non-inverting buffers with 3-state outputs. Designed for operation within a 4.5V to 5.5V supply range, this component delivers robust performance with typical output drive capabilities of 24mA at both high and low states. The TC74ACT244PF is housed in a 20-DIP (0.300", 7.62mm) package, suitable for through-hole mounting. Its 3-state output functionality allows for efficient bus interfacing and signal control. This buffer finds application in various digital logic systems, including data distribution, memory buffering, and general-purpose logic functions across industrial and consumer electronics sectors. Operating temperature range is -40°C to 85°C.
Additional Information
Series: 74ACTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 20-DIP |
