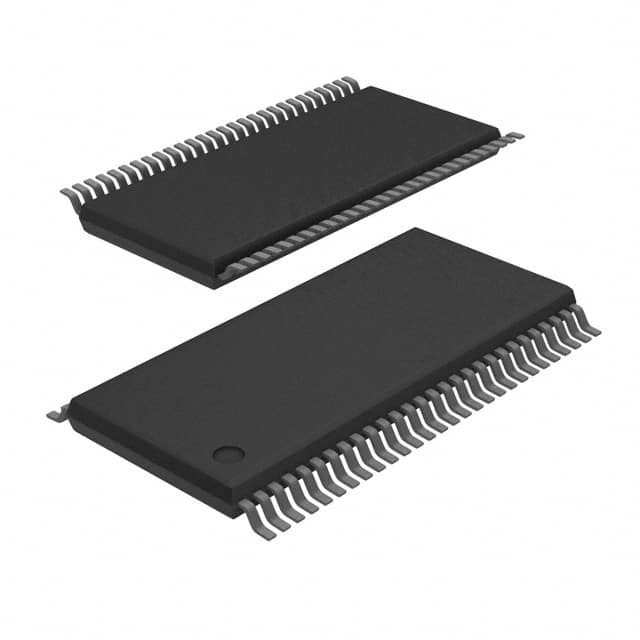

SN74LVT16501DL
IC UNIV BUS TXRX 18BIT 56SSOPManufacturer: Texas Instruments
Categories: Universal Bus Functions
Quality Control: Learn More
Texas Instruments SN74LVT16501DL is an 18-bit universal bus transceiver from the 74LVT series. Designed for robust performance, this device offers a supply voltage range of 2.7V to 3.6V. Key electrical characteristics include output drive capabilities of 32mA for high and 64mA for low. The SN74LVT16501DL is packaged in a 56-SSOP (Shrink Small Outline Package) with a 7.50mm width, suitable for surface mounting. Its operating temperature range is specified from -40°C to 85°C. This component is widely utilized in applications requiring advanced bus buffering and signal conditioning, including computing, telecommunications, and industrial control systems.
Additional Information
Series: 74LVTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Number of Circuits | 18-Bit |
| Mounting Type | Surface Mount |
| Logic Type | Universal Bus Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Output High, Low | 32mA, 64mA |
| Supplier Device Package | 56-SSOP |
