SN74ALVCH16501DLR
IC UNIV BUS TXRX 18BIT 56SSOPManufacturer: Texas Instruments
Categories: Universal Bus Functions
Quality Control: Learn More

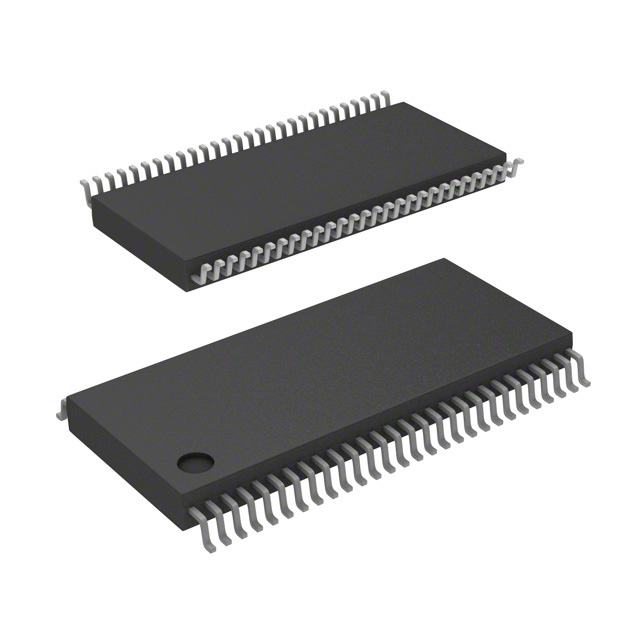

Texas Instruments SN74ALVCH16501DLR is an 18-bit universal bus transceiver featuring a 74ALVCH series logic. This device offers a wide supply voltage range from 1.65V to 3.6V, making it suitable for diverse applications. With robust output drive capabilities of 24mA for both high and low states, it ensures reliable signal transmission. The transceiver is packaged in a 56-SSOP (56-BSSOP) surface-mount configuration, provided on a tape and reel for efficient assembly. Its operating temperature range of -40°C to 85°C supports demanding environmental conditions. This component finds application in data acquisition, telecommunications, and computing systems where high-speed bus buffering and translation are critical.
Additional Information
Series: 74ALVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Number of Circuits | 18-Bit |
| Mounting Type | Surface Mount |
| Logic Type | Universal Bus Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 56-SSOP |
Request a Quote
