TXS0102YZTR

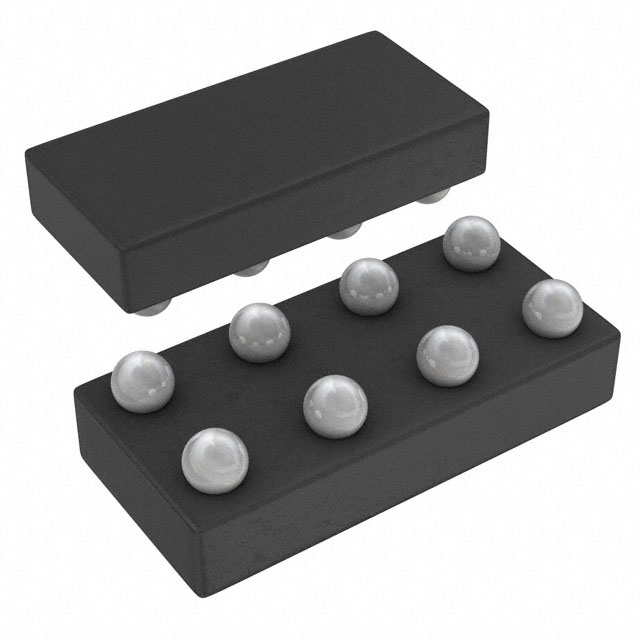

IC TRANSLTR BIDIRECTIONAL 8DSBGAManufacturer: Texas Instruments
Categories: Translators, Level Shifters
Quality Control: Learn More
Texas Instruments TXS0102YZTR is a single-circuit, dual-channel voltage level translator. This device supports bidirectional signal translation, facilitating communication between logic systems operating at different voltage levels. With a data rate of up to 24Mbps, it is suitable for applications requiring efficient inter-system voltage interfacing. The TXS0102YZTR features auto-direction sensing, simplifying implementation by automatically detecting and adapting to the direction of data flow. Its output stages are configurable as either open-drain or push-pull. The component is housed in an 8-DSBGA package, designed for surface mounting. Operating across a temperature range of -40°C to 85°C, this translator finds utility in diverse applications, including consumer electronics, industrial automation, and communication systems where voltage domain compatibility is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, DSBGA |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 24Mbps |
| Supplier Device Package | 8-DSBGA |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.65 V ~ 3.6 V |
| Voltage - VCCB | 2.3 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
