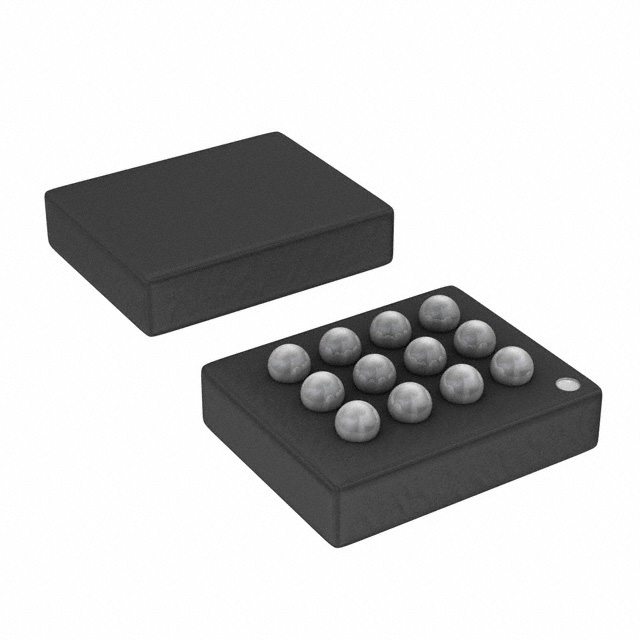

TXB0104GXUR
IC TRANSLTR BIDIRECTIONAL 12BGAManufacturer: Texas Instruments
Categories: Translators, Level Shifters
Quality Control: Learn More
The Texas Instruments TXB0104GXUR is a single-circuit, 4-channel, bidirectional voltage level translator. This device operates across a wide VCCA range of 1.2V to 3.6V and a VCCB range of 1.65V to 5.5V, facilitating seamless communication between disparate voltage domains. Featuring auto-direction sensing, it eliminates the need for explicit direction control pins, simplifying design and reducing component count. With a data rate capability of 100Mbps and tri-state, non-inverted outputs, this translator is suitable for applications in consumer electronics, industrial automation, and telecommunications. The 12-BGA Microstar Junior (2x2.5) surface-mount package ensures a compact footprint, and it is supplied on tape and reel for efficient automated assembly. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 12-BGA Microstar Junior (2x2.5) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
