SN74FB2040RC
IC 8-BIT TTL/BTL XCVR 52-QFPManufacturer: Texas Instruments
Categories: Specialty Logic
Quality Control: Learn More

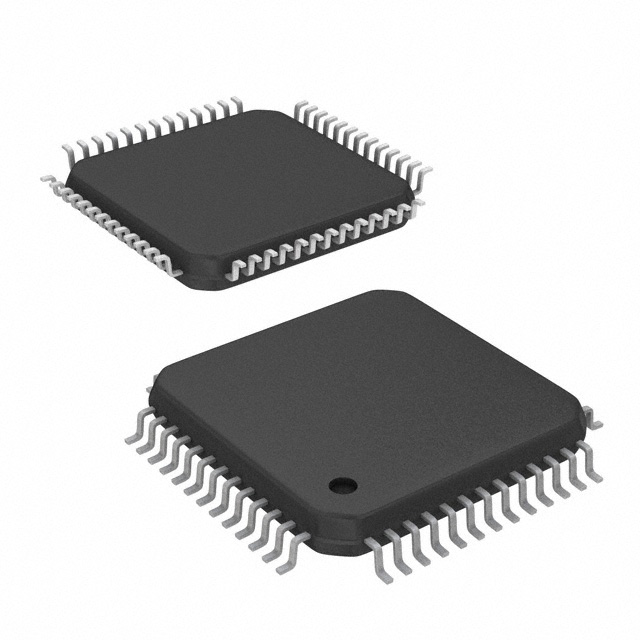

Texas Instruments SN74FB2040RC is an 8-bit TTL/BTL transceiver/translator IC housed in a 52-pin QFP package. This device facilitates bidirectional data transfer between TTL and BTL logic levels. It is suitable for high-speed digital system interfaces and is commonly employed in telecommunications infrastructure, networking equipment, and high-performance computing applications. The SN74FB2040RC features a surface mount design with a supply voltage range of 4.5V to 5.5V and operates within a temperature range of 0°C to 70°C. The 52-QFP (10x10) package ensures robust integration into complex board layouts.
Additional Information
Series: 74FBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Logic Type | TTL/BTL Transceiver/Translator |
| Operating Temperature | 0°C ~ 70°C |
| Supply Voltage | 4.5V ~ 5.5V |
| Supplier Device Package | 52-QFP (10x10) |
