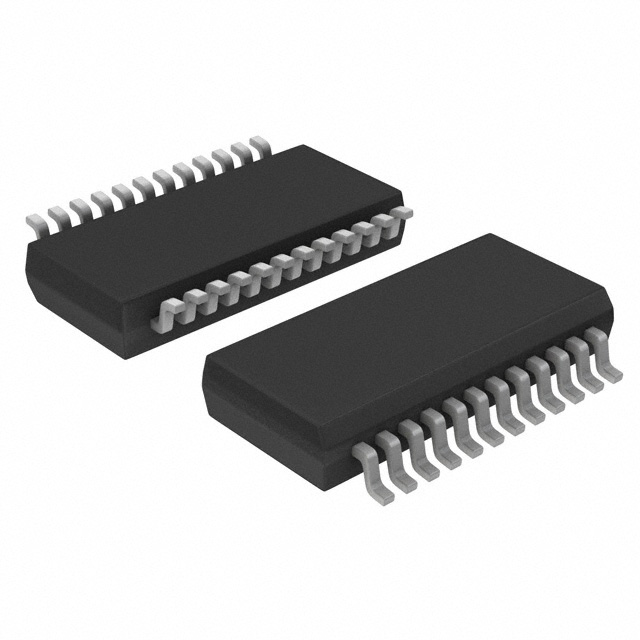

SN74CBTD3861PWRE4
IC BUS SWITCH 10 X 1:1 24TSSOPManufacturer: Texas Instruments
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
Texas Instruments SN74CBTD3861PWRE4 is a high-speed CMOS bus switch from the 74CBTD series. This component features ten independent 1:1 switches, enabling bidirectional data flow. The device operates from a single 4.5V to 5.5V supply and is housed in a compact 24-TSSOP package, suitable for surface-mount applications. Its low on-resistance and high off-isolation make it ideal for signal routing and multiplexing in applications such as consumer electronics, telecommunications, and industrial control systems. The SN74CBTD3861PWRE4 is supplied on tape and reel for automated assembly and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: 74CBTDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Circuit | 10 x 1:1 |
| Type | Bus Switch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 24-TSSOP |
