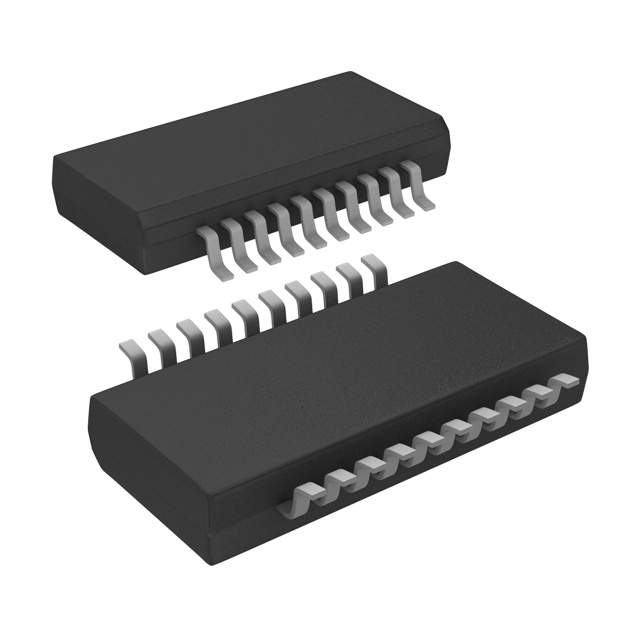

SN74CBT3244DBQR
IC BUS SWITCH 4 X 1:1 20SSOPManufacturer: Texas Instruments
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
Texas Instruments SN74CBT3244DBQR is a high-speed bus switch from the 74CBT series. This device features four independent 1:1 bus switches, each controlled by a separate output enable. The SN74CBT3244DBQR is designed for single-supply operation with a voltage range of 4.5V to 5.5V. It offers low ON-resistance and high-speed switching characteristics, making it suitable for applications requiring efficient signal routing and isolation. The 20-SSOP package ensures a compact footprint for surface-mount assembly. This component is commonly employed in telecommunications, computing, and industrial control systems where reliable bus switching is critical. The device operates across a temperature range of -40°C to 85°C.
Additional Information
Series: 74CBTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Circuit | 4 x 1:1 |
| Type | Bus Switch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 2 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 20-SSOP |
