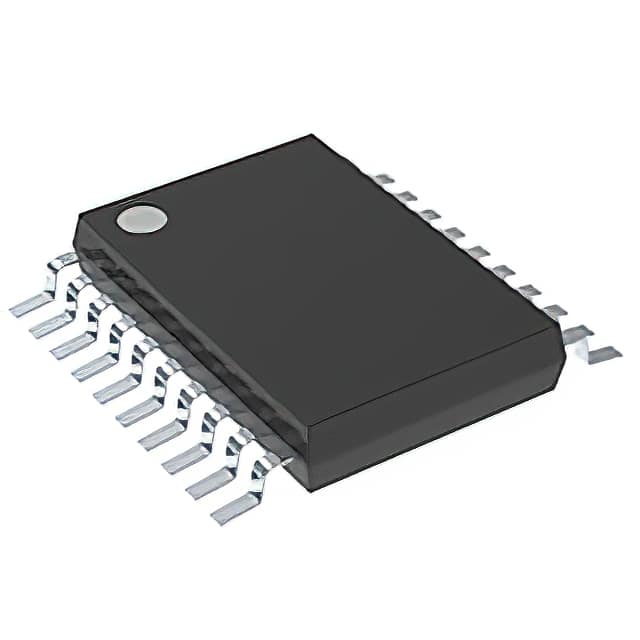

SN74CB3T3245PW
IC BUS SWITCH 8 X 1:1 20TSSOPManufacturer: Texas Instruments
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
Texas Instruments SN74CB3T3245PW is an 8-bit, dual-supply, configurable voltage translation bus switch. This device features two independent 4-bit bus switches, allowing for bidirectional data flow. Each switch can be connected to a 4-bit bus, offering flexible configuration options. The SN74CB3T3245PW operates from a single supply voltage range of 2.3V to 3.6V. Its low ON-resistance and minimal propagation delay make it suitable for high-speed signal routing applications. The component is housed in a 20-TSSOP surface-mount package, facilitating integration into compact electronic designs. This bus switch is commonly employed in telecommunications, consumer electronics, and industrial automation systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: 74CBRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Circuit | 8 x 1:1 |
| Type | Bus Switch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 3.6V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 20-TSSOP |
