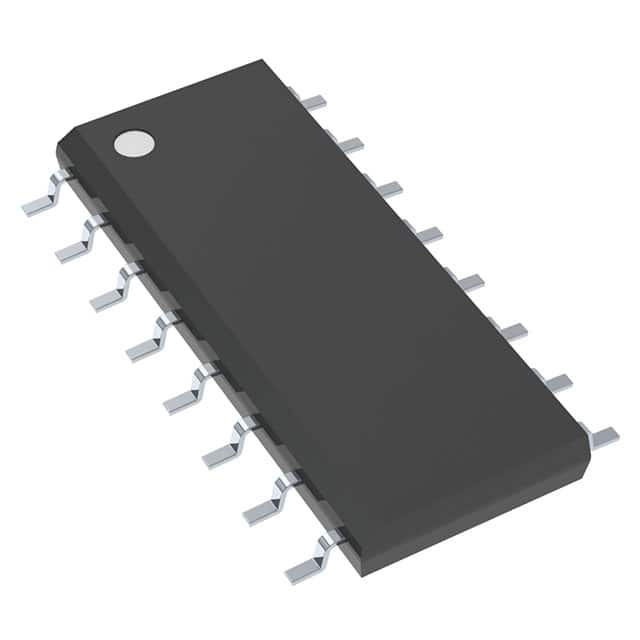

SN65LVCP23DR
IC CROSSPOINT SW 1 X 2:2 16SOICManufacturer: Texas Instruments
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
Texas Instruments SN65LVCP23DR is a 1x2:2 crosspoint switch designed for high-speed signal routing. This component features a single circuit configuration, enabling efficient signal path management. Operating from a single 3V to 3.6V supply, the SN65LVCP23DR is suitable for applications requiring robust signal integrity. Its 16-SOIC package facilitates surface mounting and integration into compact designs. The component is engineered for operation within a temperature range of -40°C to 85°C, making it reliable for demanding environments. The 65LVCP series exemplifies Texas Instruments' commitment to advanced signal switching solutions, finding application in telecommunications, networking equipment, and high-performance computing.
Additional Information
Series: 65LVCPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Circuit | 1 x 2:2 |
| Type | Crosspoint Switch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 16-SOIC |
