CD4034BF3A
CMOS 8-STAGE STATIC BIDIRECTIONAManufacturer: Texas Instruments
Categories: Shift Registers
Quality Control: Learn More

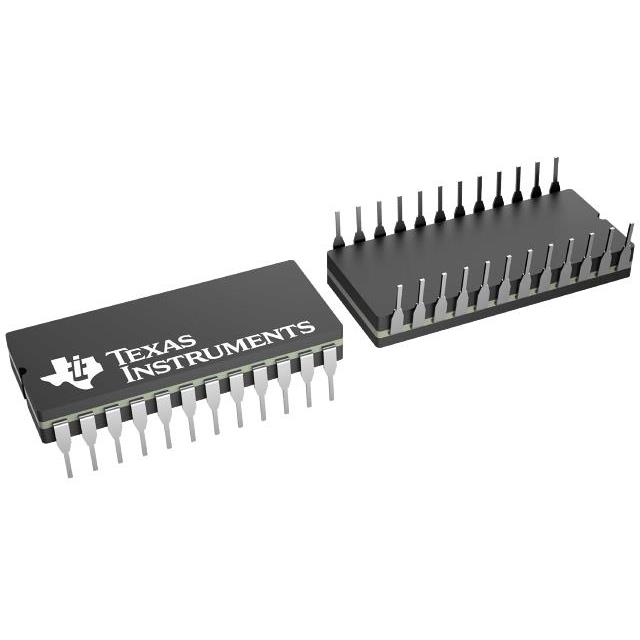

Texas Instruments CD4034BF3A is an 8-stage, bidirectional static shift register from the 4000B series. This CMOS device functions as a parallel-to-serial converter, offering 8 bits per element with a single element. Designed for through-hole mounting, the CD4034BF3A features tri-state outputs and operates across a wide voltage supply range of 3V to 18V. Its robust construction, housed in a 24-CDIP package, ensures reliable performance within an extended operating temperature range of -55°C to 125°C. This component finds application in various industrial automation, data acquisition, and telecommunications systems requiring versatile data manipulation and storage.
Additional Information
Series: 4000BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-CDIP (0.600"", 15.24mm) |
| Output Type | Tri-State |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Parallel to Serial |
| Logic Type | Register, Bidirectional |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 3V ~ 18V |
| Supplier Device Package | 24-CDIP |
| Number of Bits per Element | 8 |
