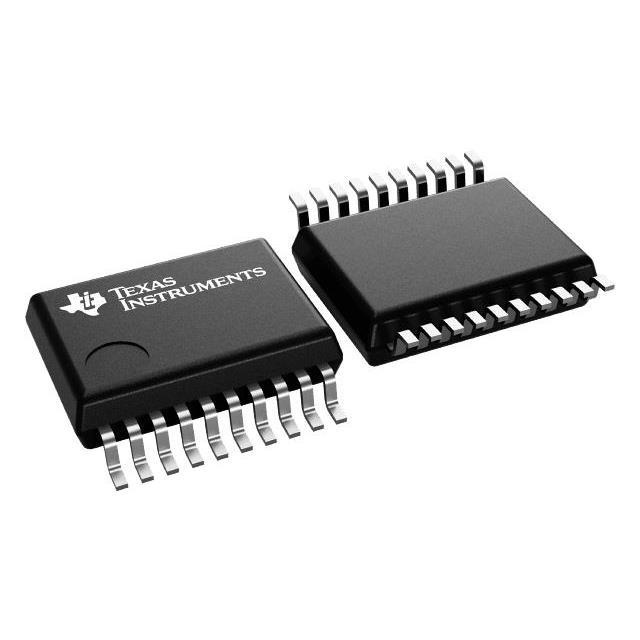

SN74AC573NS
IC D-TYPE TRANSP SGL 8:8 20SOManufacturer: Texas Instruments
Categories: Latches
Quality Control: Learn More
Texas Instruments SN74AC573NS is an 8:8 D-Type transparent latch from the 74AC series. This single, independent circuit features tri-state, non-inverted outputs, capable of sourcing and sinking 24mA at both high and low logic levels. With a propagation delay of 2.5ns, it operates across a supply voltage range of 2V to 6V. The component is housed in a 20-SOIC (0.209", 5.30mm Width) surface-mount package. This device is commonly utilized in industrial automation, telecommunications infrastructure, and consumer electronics applications where high-speed data buffering and signal integrity are critical. The SN74AC573NS is supplied in tube packaging.
Additional Information
Series: 74ACRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.209"", 5.30mm Width) |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Circuit | 8:8 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Independent Circuits | 1 |
| Current - Output High, Low | 24mA, 24mA |
| Delay Time - Propagation | 2.5ns |
| Supplier Device Package | 20-SO |
