CY74FCT2373TQCT
IC D-TYPE TRANSP SGL 8:8 20SSOPManufacturer: Texas Instruments
Categories: Latches
Quality Control: Learn More
Texas Instruments CY74FCT2373TQCT is an 8:8 D-type transparent latch featuring tri-state outputs. This 74FCT series component offers a propagation delay of 1.5ns, supporting efficient data transfer in demanding applications. Each of the two independent circuits within the device functions as an 8-bit transparent latch. The output stages are capable of sinking 12mA and sourcing 15mA. Designed for surface mounting, the CY74FCT2373TQCT is housed in a 20-SSOP package and operates across a temperature range of -40°C to 85°C, with a supply voltage range of 4.75V to 5.25V. This component is commonly utilized in telecommunications infrastructure, industrial automation, and high-speed computing systems.
Additional Information
Series: 74FCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

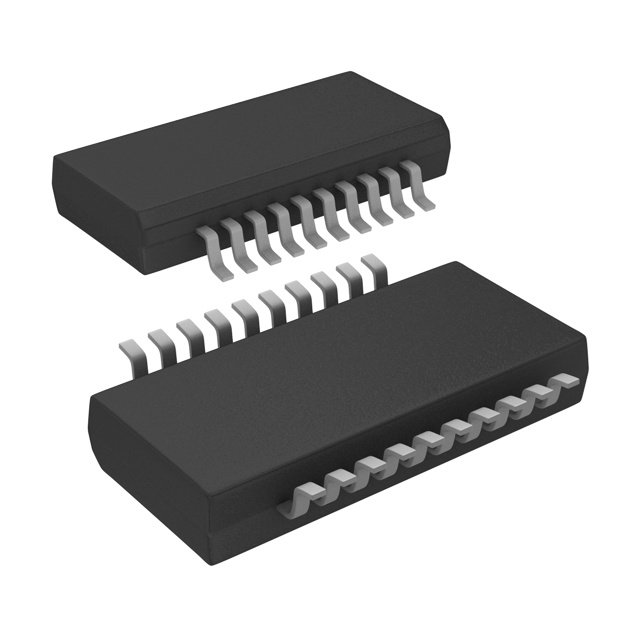

| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 8:8 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Independent Circuits | 1 |
| Current - Output High, Low | 15mA, 12mA |
| Delay Time - Propagation | 1.5ns |
| Supplier Device Package | 20-SSOP |
