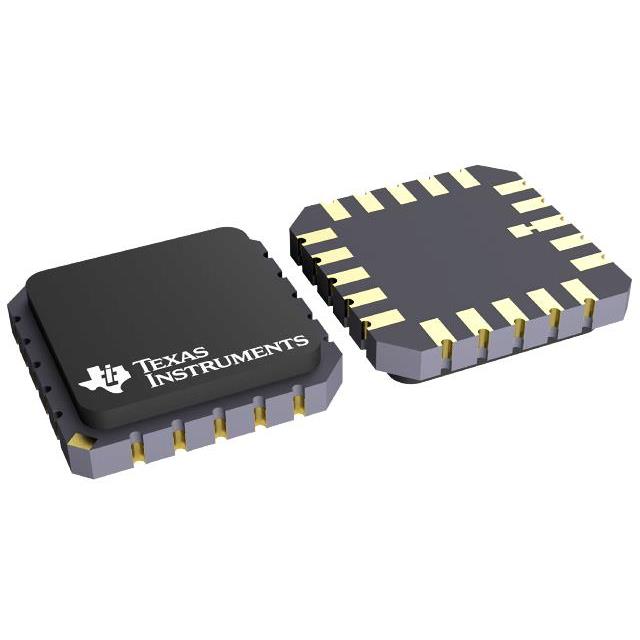

SNJ54AS808BFK
IC GATE AND 6CH 2-INP 20LCCCManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
AND Gate IC 6 Channel 20-LCCC (8.89x8.89)
Additional Information
Series: 54ASRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-CLCC |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 40mA, 40mA |
| Number of Inputs | 2 |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 33 mA |
Request a Quote
Clients Also Buy
5962-8966801LA
SN54AS867 SYNCHRONOUS 8-BIT UP/D

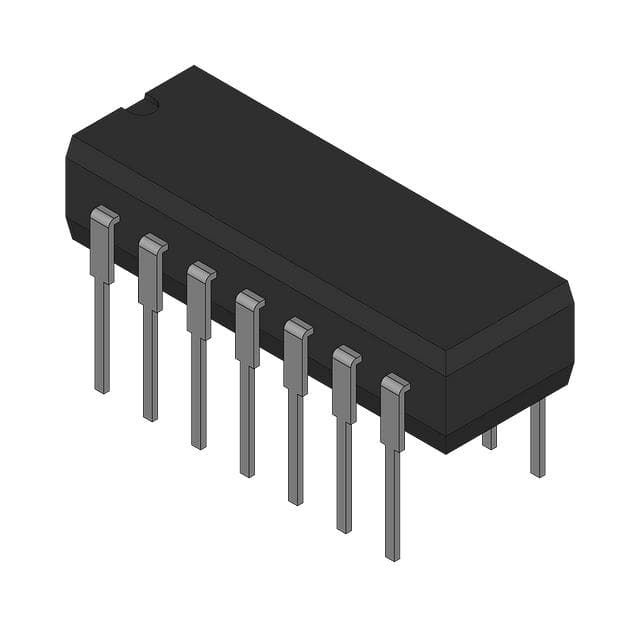

SNJ54AS00J
IC QUAD 2-INP

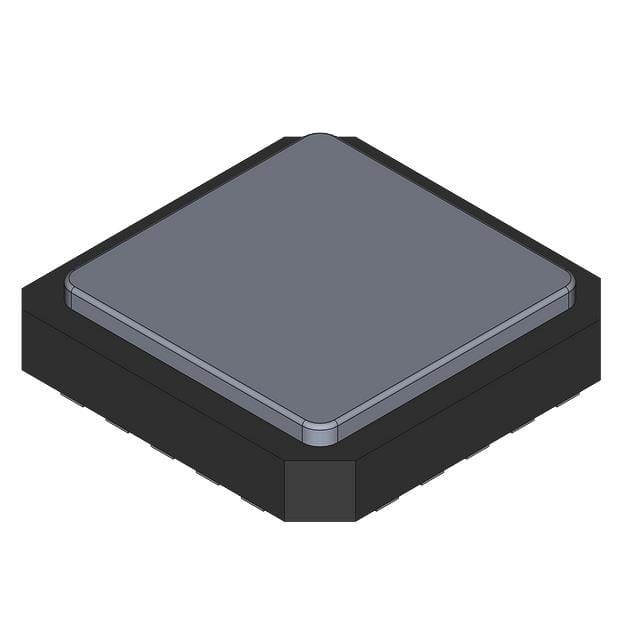

SNJ54AS240FK
