SN74LVC1G06YZTR
IC INVERTER 1CH 1-INP 4DSBGAManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More

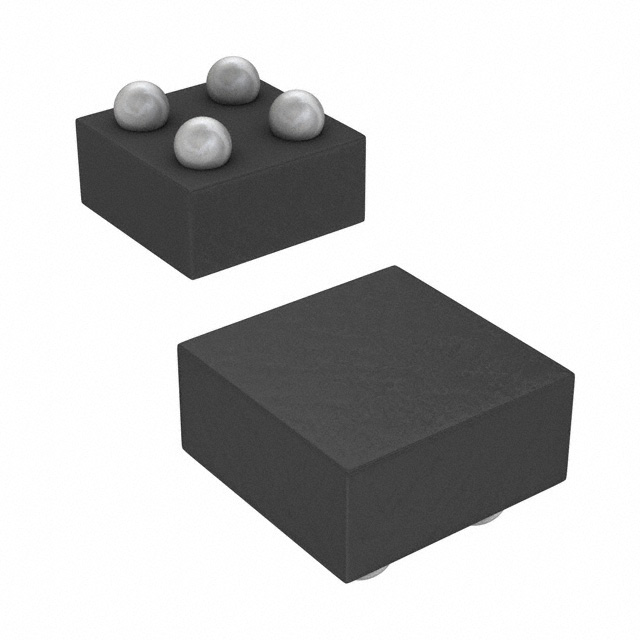

Texas Instruments SN74LVC1G06YZTR is a single-channel, open-drain inverter from the 74LVC series. This device features one input and one output, designed for applications requiring robust signal inversion with an open-drain configuration. It operates across a wide supply voltage range of 1.65V to 5.5V, with low quiescent current of 10 µA (max). Propagation delay is specified at 3.5ns at 5V with a 50pF load. Input logic levels are supported from 0.58V to 1.65V for low and 1.07V to 3.85V for high. The SN74LVC1G06YZTR is housed in a compact 4-DSBGA (0.9x0.9) surface-mount package and is supplied on tape and reel. This component is commonly utilized in automotive, industrial, and consumer electronics for logic buffering and level shifting.
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Open Drain |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | -, 32mA |
| Number of Inputs | 1 |
| Supplier Device Package | 4-DSBGA (0.9x0.9) |
| Input Logic Level - High | 1.07V ~ 3.85V |
| Input Logic Level - Low | 0.58V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 3.5ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 10 µA |
