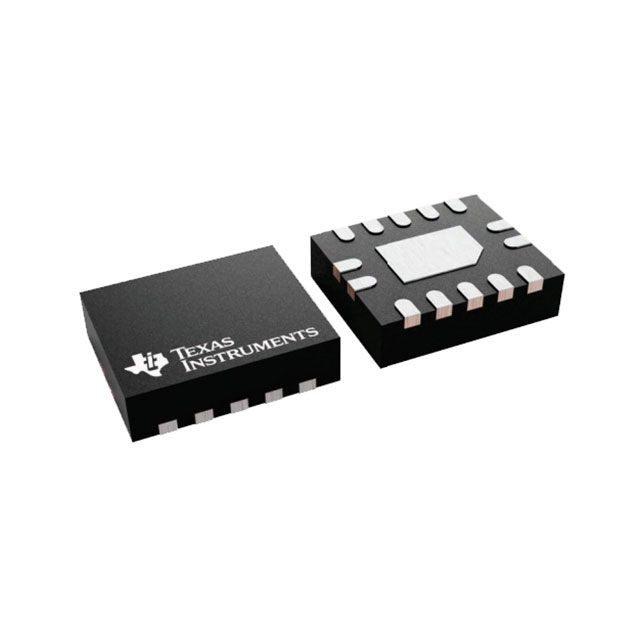

SN74LV4T08QWBQARQ1
IC GATE AND 4CH 2-INP 14WQFNManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
AND Gate IC 4 Channel Schmitt Trigger 14-WQFN (3x2.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.6V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Input Logic Level - High | 1.1V ~ 2V |
| Input Logic Level - Low | 0.5V ~ 0.85V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Grade | Automotive |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 2 µA |
| Qualification | AEC-Q100 |
Request a Quote
