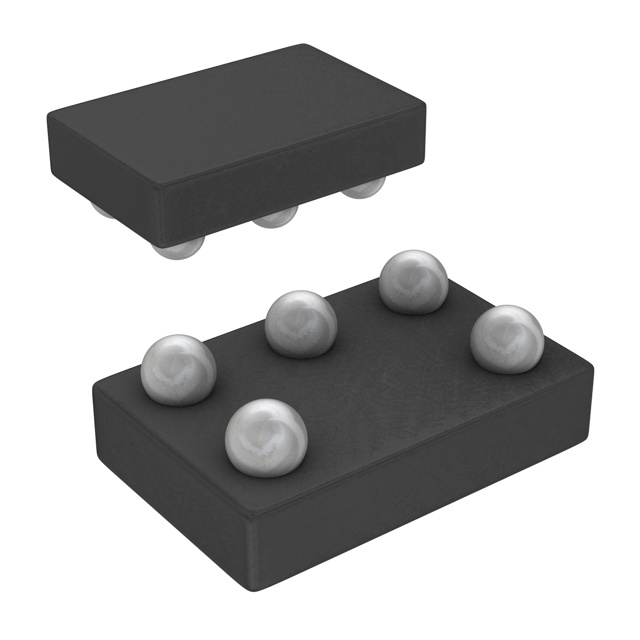

SN74AUC1GU04YEPR
IC INVERTER 1CH 1-INP 5DSBGAManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
Texas Instruments SN74AUC1GU04YEPR is a single-channel, low-voltage CMOS inverter from the 74AUC series. This device features a single input and a single output, operating with a supply voltage range of 0.8V to 2.7V. The SN74AUC1GU04YEPR offers a maximum propagation delay of 2.1ns at 2.5V with a 30pF load. Quiescent current is a maximum of 10 µA, with output drive capabilities of 9mA for both high and low states. The component is housed in a compact 5-DSBGA (1.4x0.9) package, suitable for surface mounting. This inverter finds application in portable electronics, data communication systems, and consumer electronics where low power consumption and high-speed operation are critical. The part is supplied in Tape & Reel packaging.
Additional Information
Series: 74AUCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-XFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 0.8V ~ 2.7V |
| Current - Output High, Low | 9mA, 9mA |
| Number of Inputs | 1 |
| Supplier Device Package | 5-DSBGA (1.4x0.9) |
| Input Logic Level - High | - |
| Input Logic Level - Low | - |
| Max Propagation Delay @ V, Max CL | 2.1ns @ 2.5V, 30pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 10 µA |
