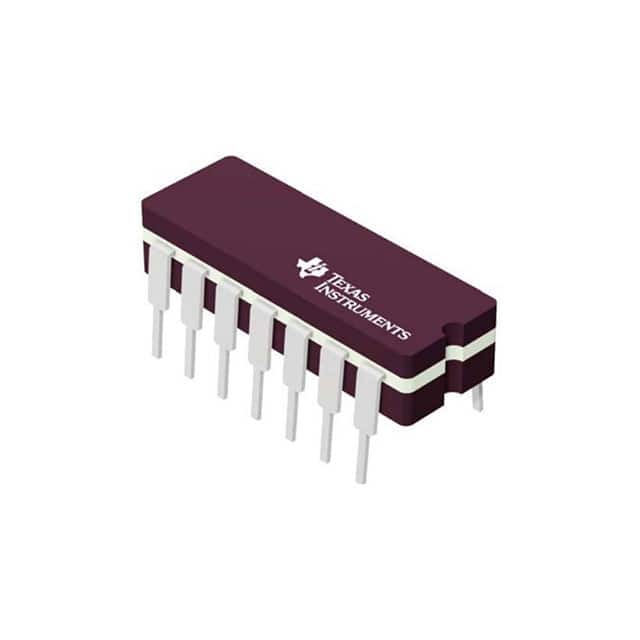

SN7414N
IC INVERT SCHMITT 6CH 1INP 14DIPManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
Inverter IC 6 Channel Schmitt Trigger 14-PDIP
Additional Information
Series: 7400RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | Inverter |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 800µA, 16mA |
| Number of Inputs | 1 |
| Supplier Device Package | 14-PDIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.6V |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 15pF |
| Number of Circuits | 6 |
Request a Quote
