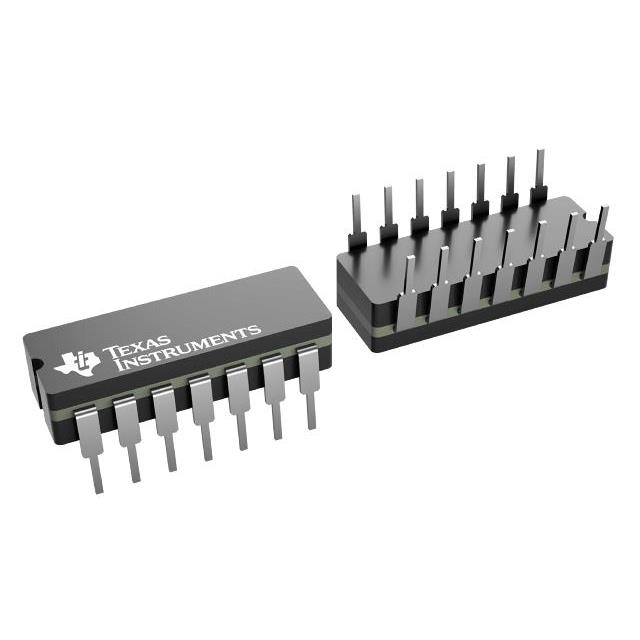

SN54LS00J
IC GATE NAND 4CH 2-INP 14CDIPManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
NAND Gate IC 4 Channel 14-CDIP
Additional Information
Series: 54LSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 400µA, 4mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-CDIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.7V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 4.4 mA |
