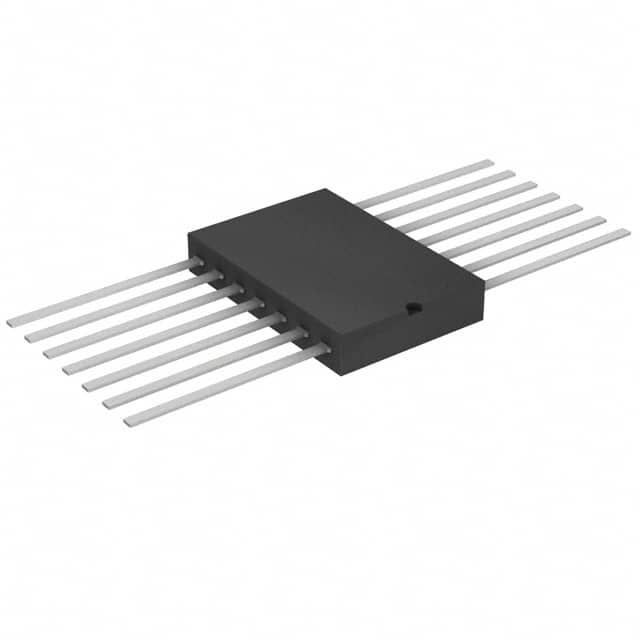

5962-8754903VDA
IC GATE NAND 4CH 2-INP 14CFPManufacturer: Texas Instruments
Categories: Gates and Inverters
Quality Control: Learn More
NAND Gate IC 4 Channel 14-CFP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 14-CFlatpack |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 24mA, 24mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-CFP |
| Input Logic Level - High | 2.56V ~ 4.86V |
| Input Logic Level - Low | 0.1V ~ 0.36V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 4 µA |
Request a Quote
