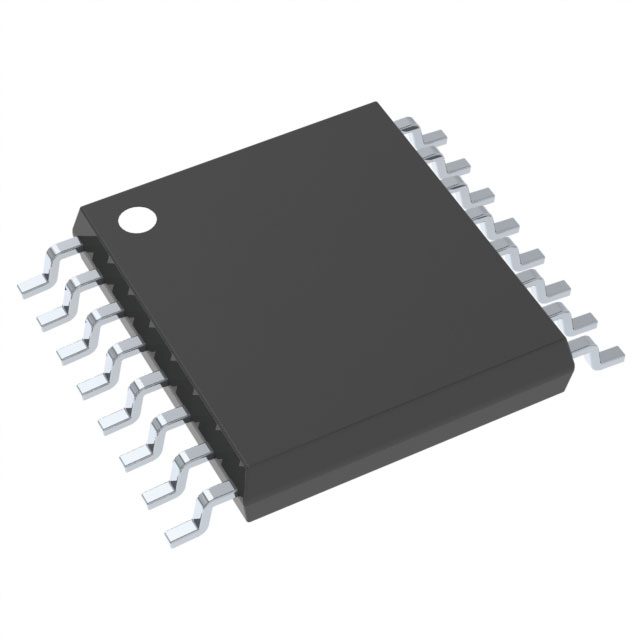

SN74LV175APW-P
IC FF D-TYPE SNGL 4BIT 16TSSOPManufacturer: Texas Instruments
Categories: Flip Flops
Quality Control: Learn More
Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-TSSOP (0.173"", 4.40mm Width)
Additional Information
Series: 74LVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Master Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 20 µA |
| Current - Output High, Low | 12mA, 12mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 165 MHz |
| Input Capacitance | 1.4 pF |
| Supplier Device Package | 16-TSSOP |
| Max Propagation Delay @ V, Max CL | 9.3ns @ 5V, 50pF |
| Number of Bits per Element | 4 |
