SN74LS74AN-NG
IC FF D-TYPE DUAL 1BIT 14DIPManufacturer: Texas Instruments
Categories: Flip Flops
Quality Control: Learn More

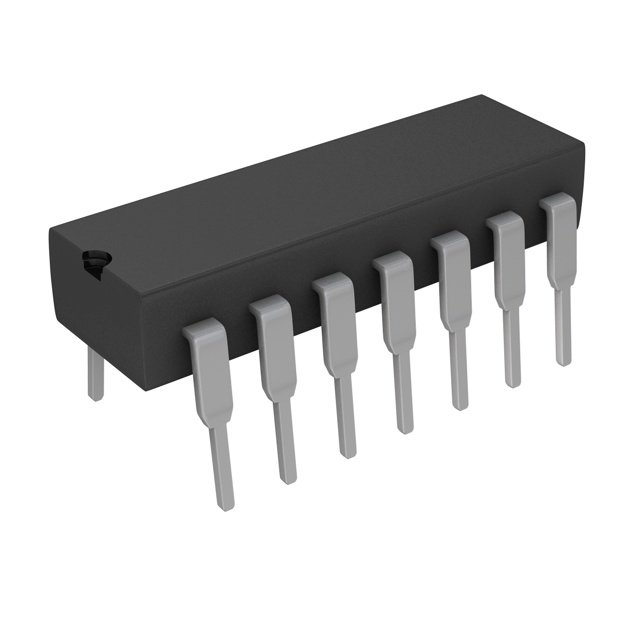

Texas Instruments SN74LS74AN-NG is a dual D-type flip-flop from the 74LS series. Each element features direct set and reset capabilities, operating on a positive edge trigger. This component offers a maximum clock frequency of 33 MHz with a typical propagation delay of 40ns at 5V and 15pF load. It supports a supply voltage range of 4.75V to 5.25V, with a quiescent current of 8 mA. Output drive capability is rated at 400µA high and 8mA low. The SN74LS74AN-NG is housed in a 14-pin PDIP (Plastic Dual In-line Package) with 0.300" lead spacing, suitable for through-hole mounting. Applications for this device are prevalent in industrial automation and consumer electronics.
Additional Information
Series: 74LSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Complementary |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Current - Output High, Low | 400µA, 8mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 33 MHz |
| Supplier Device Package | 14-PDIP |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Number of Bits per Element | 1 |
