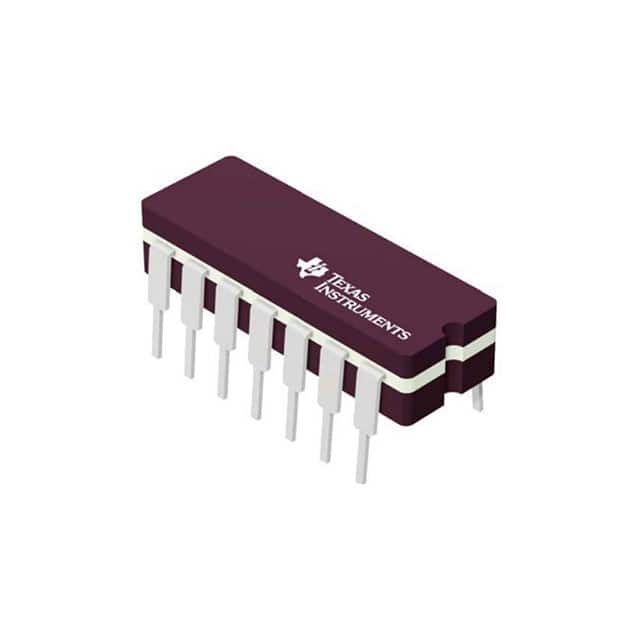

SN74LS107AN
IC FF JK TYPE DUAL 1BIT 14DIPManufacturer: Texas Instruments
Categories: Flip Flops
Quality Control: Learn More
Flip Flop 2 Element JK Type 1 Bit Negative Edge 14-DIP (0.300"", 7.62mm)
Additional Information
Series: 74LSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Complementary |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Function | Master Reset |
| Type | JK Type |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 6 mA |
| Current - Output High, Low | 400µA, 8mA |
| Trigger Type | Negative Edge |
| Clock Frequency | 45 MHz |
| Supplier Device Package | 14-PDIP |
| Max Propagation Delay @ V, Max CL | 20ns @ 5V, 15pF |
| Number of Bits per Element | 1 |
