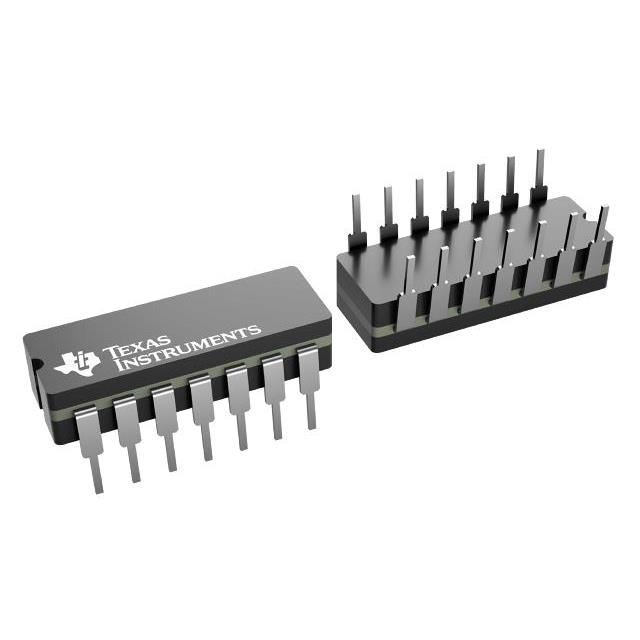

SN5472J
AND-GATED J-K MASTER-SLAVE FLIP-Manufacturer: Texas Instruments
Categories: Flip Flops
Quality Control: Learn More
Flip Flop 1 Element JK Type 1 Bit Positive Edge 14-CDIP (0.300"", 7.62mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | Complementary |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 20 mA |
| Current - Output High, Low | 16mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 20 MHz |
| Supplier Device Package | 14-CDIP |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Number of Bits per Element | 1 |
Request a Quote
