85507012A
OCTAL D-TYPE EDGE-TRIGGERED FLIPManufacturer: Texas Instruments
Categories: Flip Flops
Quality Control: Learn More

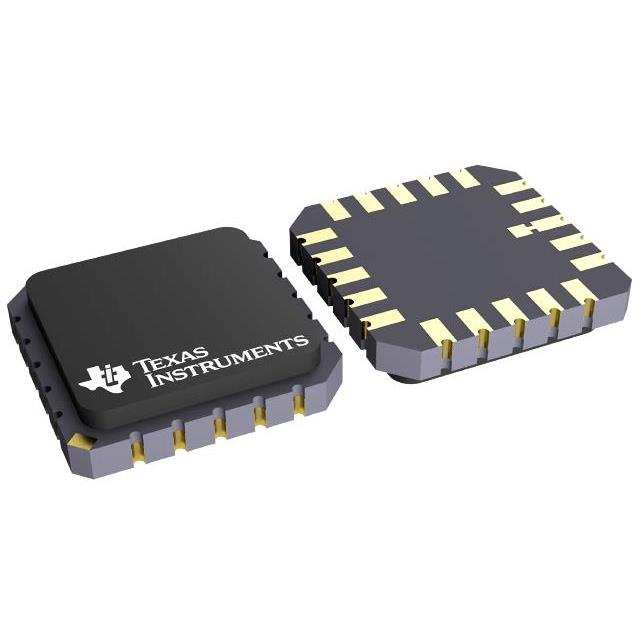

Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-CLCC
Additional Information
Series: 54HCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-CLCC |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA |
| Current - Output High, Low | 6mA, 6mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 36 MHz |
| Input Capacitance | 3 pF |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Max Propagation Delay @ V, Max CL | 41ns @ 5.5V, 150pF |
| Number of Bits per Element | 8 |
Request a Quote
