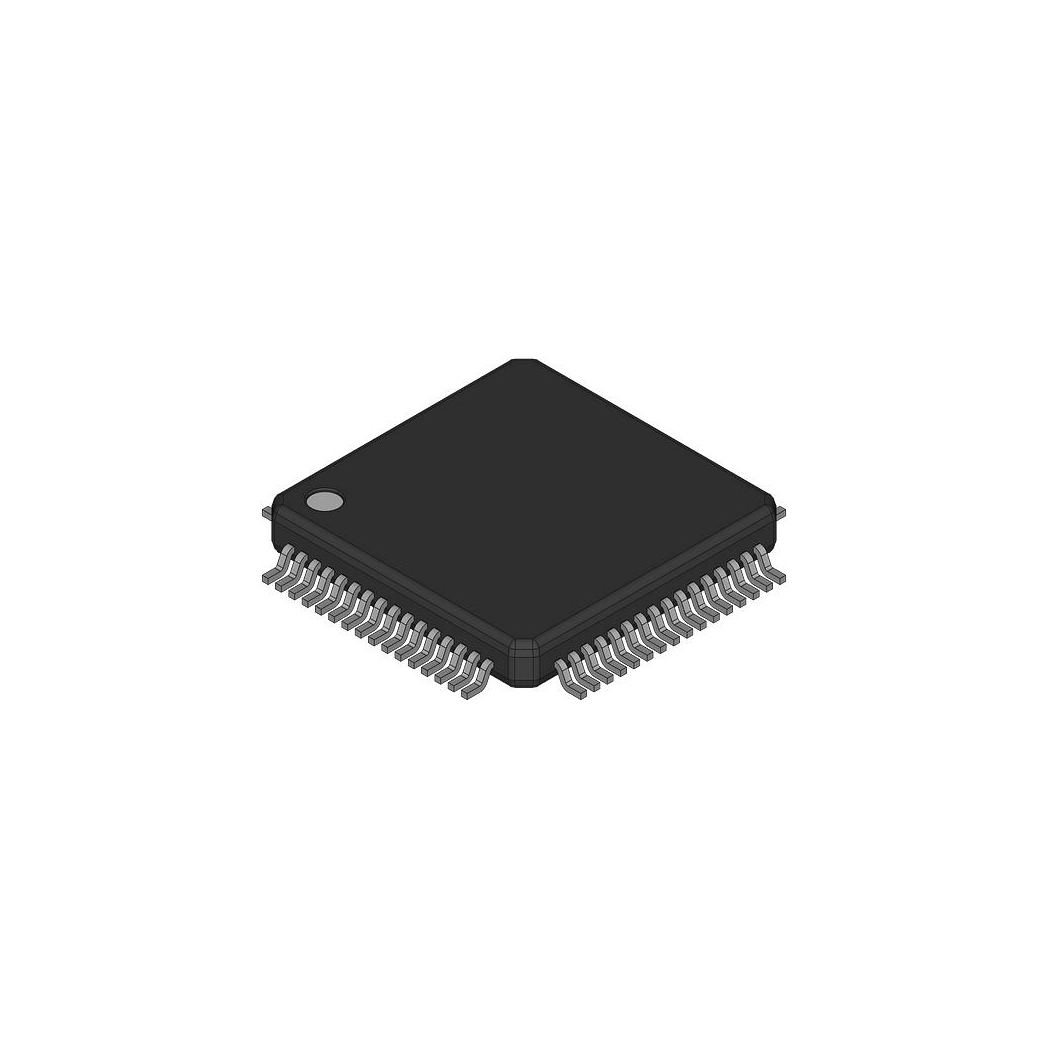

SN74V293-10PZA
IC FIFO SYNC 128KX9 80LQFPManufacturer: Texas Instruments
Categories: FIFOs Memory
Quality Control: Learn More
Texas Instruments SN74V293-10PZA is a synchronous, uni-directional FIFO memory component from the 74V series. This device offers a memory organization of 128K x 9 or 64K x 18, providing 1.125 Megabits of storage. Operating at a data rate of 100MHz with an access time of 6.5ns, it supports depth and width expansion. The SN74V293-10PZA features First Word Fall Through (FWFT) support and retransmit capability, along with programmable flags. It is supplied in an 80-LQFP (14x14) surface mount package, operates from a 3.15V to 3.45V supply, and consumes a maximum of 35mA. This component is suitable for applications in telecommunications, data acquisition, and high-speed buffering.
Additional Information
Series: 74VRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 1.125M (64K x 18)(128K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 100MHz |
| Access Time | 6.5ns |
| Current - Supply (Max) | 35mA |
| Supplier Device Package | 80-LQFP (14x14) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 3.15 V ~ 3.45 V |
| Programmable | Not Verified |
