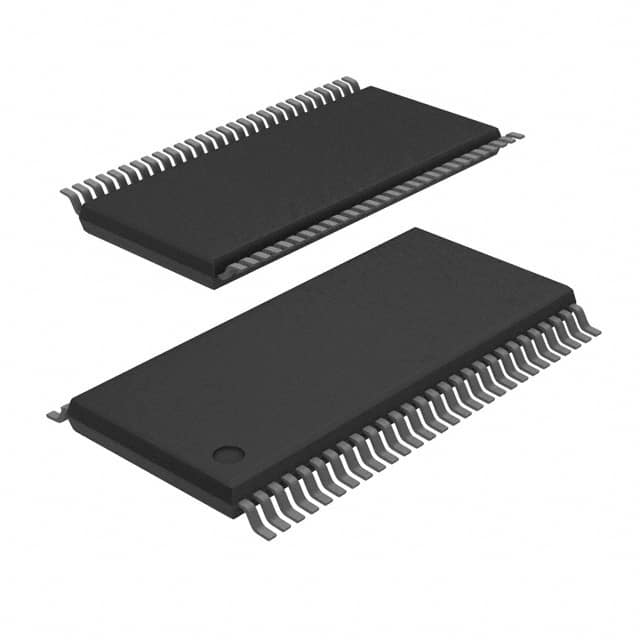

SN74ALVC7806-40DL
IC FIFO ASYNC 256X18 56SSOPManufacturer: Texas Instruments
Categories: FIFOs Memory
Quality Control: Learn More
Texas Instruments SN74ALVC7806-40DL is an asynchronous FIFO memory device from the 74ALVC series, offering a 4.5K (256 x 18) memory configuration. This uni-directional component operates at up to 25MHz with a maximum access time of 20ns. It supports width expansion for increased data throughput. The device features programmable flags and operates within a supply voltage range of 3 V to 3.6 V, drawing a maximum of 40µA. Packaged in a 56-SSOP (56-BSSOP) surface mount configuration, this component is designed for applications in telecommunications, industrial automation, and consumer electronics where efficient data buffering is critical.
Additional Information
Series: 74ALVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 4.5K (256 x 18) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 25MHz |
| Access Time | 20ns |
| Current - Supply (Max) | 40µA |
| Supplier Device Package | 56-SSOP |
| Bus Directional | Uni-Directional |
| Expansion Type | Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | No |
| FWFT Support | No |
| Voltage - Supply | 3 V ~ 3.6 V |
| Programmable | Not Verified |
