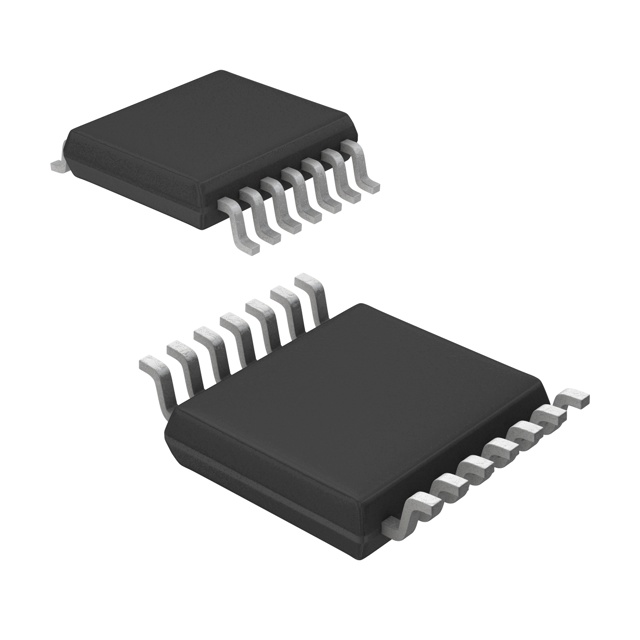

SN74HC4020PW
IC BINARY COUNTER 14-BIT 16SOManufacturer: Texas Instruments
Categories: Counters, Dividers
Quality Control: Learn More
Texas Instruments SN74HC4020PW is a 14-bit binary ripple counter from the 74HC series. This monolithic high-speed CMOS device features a single counter element with asynchronous preset and asynchronous clear capabilities. Operating with a supply voltage range of 2V to 6V, it offers a maximum count frequency of 33 MHz. The counter increments on the negative-going edge of the clock input. It is housed in a 16-SOIC package suitable for surface mounting. Applications for this component include frequency division, timing generation, and sequence control in digital systems. The operating temperature range is from -40°C to 85°C.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Binary Counter |
| Reset | Asynchronous |
| Operating Temperature | -40°C ~ 85°C |
| Direction | Up |
| Trigger Type | Negative Edge |
| Timing | Asynchronous |
| Supplier Device Package | 16-SO |
| Voltage - Supply | 2 V ~ 6 V |
| Count Rate | 33 MHz |
| Number of Bits per Element | 14 |
