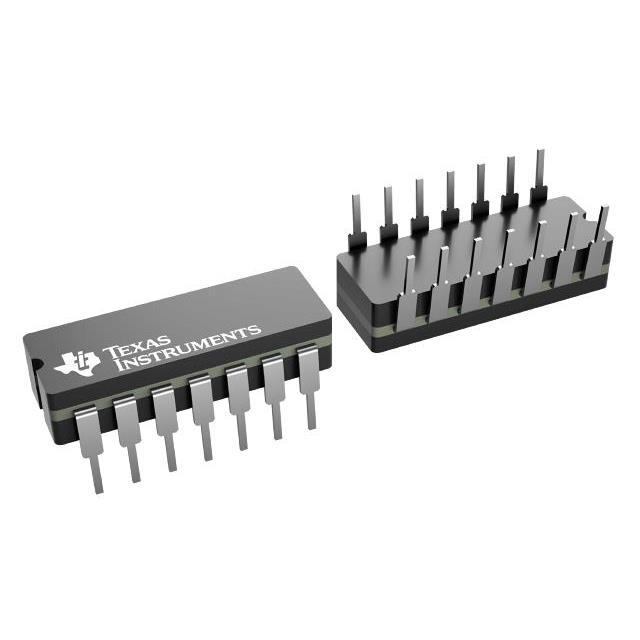

CD54HCT393F
HIGH SPEED CMOS LOGIC DUAL 4-STAManufacturer: Texas Instruments
Categories: Counters, Dividers
Quality Control: Learn More
Counter IC Binary Counter 2 Element 4 Bit Negative Edge 14-CDIP
Additional Information
Series: 54HCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Logic Type | Binary Counter |
| Reset | Asynchronous |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Direction | Up |
| Trigger Type | Negative Edge |
| Timing | - |
| Supplier Device Package | 14-CDIP |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Count Rate | 27 MHz |
| Number of Bits per Element | 4 |
