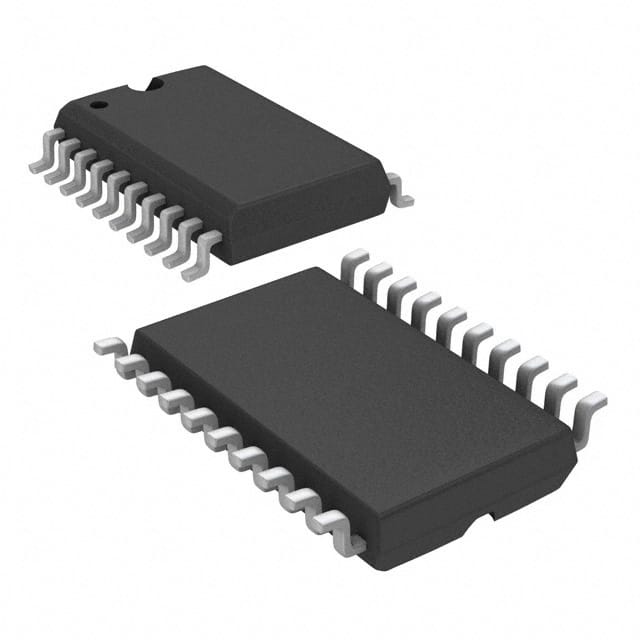

SN74LS682DW
IC COMPARATOR MAG 8BIT 20SOICManufacturer: Texas Instruments
Categories: Comparators
Quality Control: Learn More
Texas Instruments SN74LS682DW is an 8-bit magnitude comparator from the 74LS series, packaged in a 20-SOIC (0.295" width) surface-mount form factor. This device offers active-low outputs signifying A=B and A>B conditions. Designed for operation with a supply voltage range of 4.85V to 5.25V, it exhibits a maximum propagation delay of 30ns at 5V with a 45pF load capacitance. The output capabilities are rated at 400µA for high output and 24mA for low output. This component finds application in digital logic systems requiring precise comparison of binary values, commonly utilized in industrial control, data acquisition, and consumer electronics. The SN74LS682DW is supplied in tube packaging.
Additional Information
Series: 74LSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Output | Active Low |
| Type | Magnitude Comparator |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.85V ~ 5.25V |
| Current - Output High, Low | 400µA, 24mA |
| Supplier Device Package | 20-SOIC |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 45pF |
| Output Function | A=B, A>B |
| Number of Bits | 8 |
