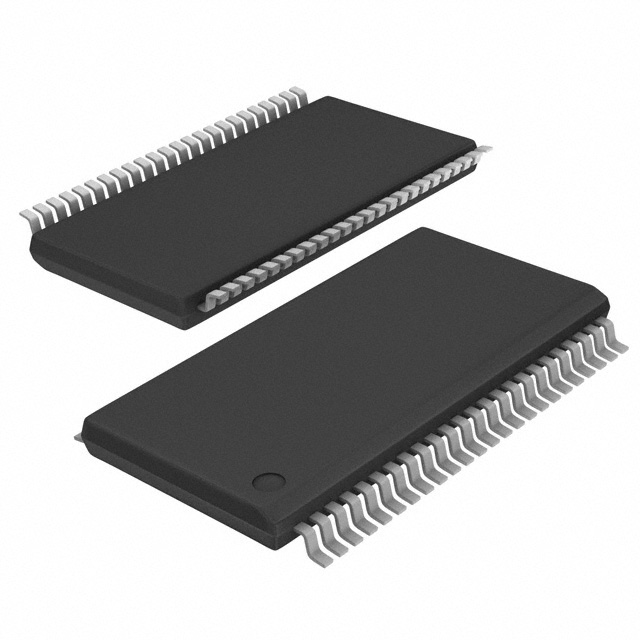

SN74LVCH16540ADGVR
IC BUFFER INVERT 3.6V 48TVSOPManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN74LVCH16540ADGVR is an inverting buffer with a 3-state output, designed for high-speed digital applications. This device features two independent 8-bit buffer elements, providing a total of 16 buffer channels. Operating from a wide supply voltage range of 1.65V to 3.6V, it offers a flexible solution for various system requirements. Each output can source or sink up to 24mA, ensuring robust signal driving capabilities. The 48-TVSOP package facilitates efficient board space utilization in demanding designs. Typical applications include data bus buffering, signal isolation, and level translation in telecommunications, industrial automation, and consumer electronics. The 74LVCH series offers low voltage operation with TTL-compatible inputs, making it suitable for mixed-voltage environments.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFSOP (0.173"", 4.40mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Buffer, Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 48-TVSOP |
