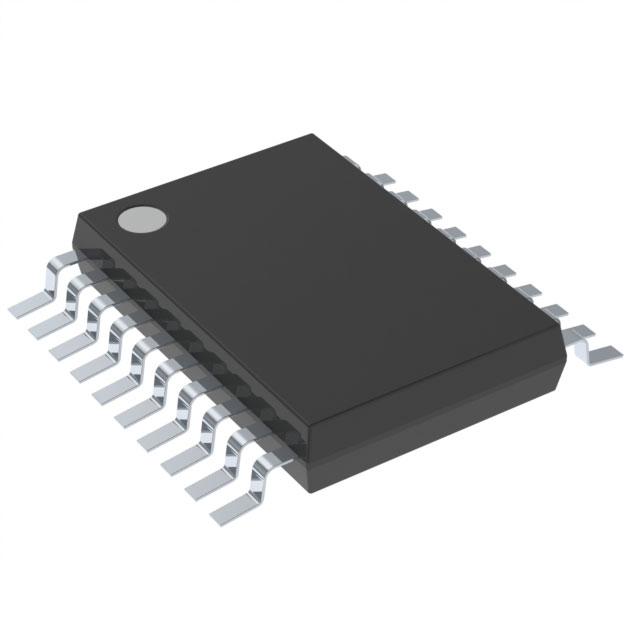

SN74HC245NS
IC TXRX NON-INVERT 6V 20SOManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN74HC245NS is an 8-bit, non-inverting transceiver featuring 3-state outputs. This 74HC series component operates across a wide supply voltage range of 2V to 6V, with typical output drive capabilities of 7.8mA high and low. The device is housed in a 20-SOIC (0.209" width) surface-mount package, designed for efficient board integration. Its robust construction and reliable performance make it suitable for applications in industrial automation, consumer electronics, and telecommunications. The SN74HC245NS is a fundamental building block for data buffering and signal transmission in complex digital systems.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.209"", 5.30mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | 20-SO |
