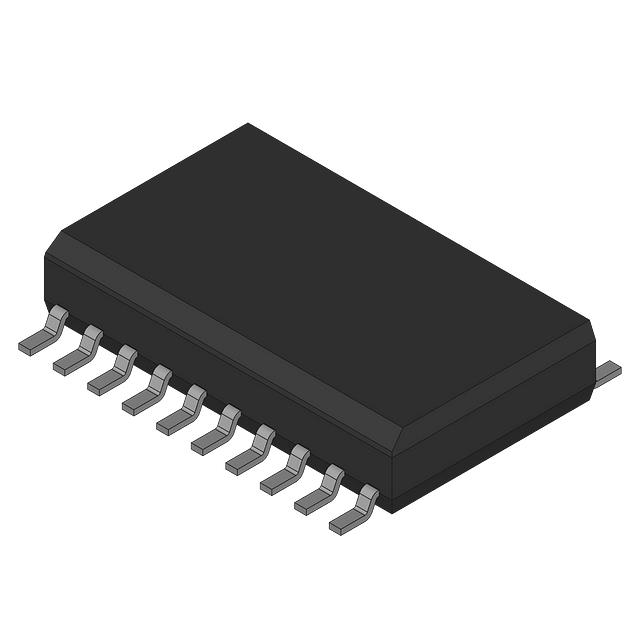

SN74BCT2240DW
IC BUFFER INVERT 5.5V 20SOICManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN74BCT2240DW is a BCT series buffer featuring inverting logic across two 4-bit elements. This device offers 3-state outputs with a typical drive capability of 12mA for both high and low states. Designed for surface mount applications, it is housed in a 20-SOIC package. The operating voltage range is 4.5V to 5.5V, with an operating temperature range of 0°C to 70°C. This component is commonly utilized in data acquisition, communication systems, and industrial automation.
Additional Information
Series: 74BCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Buffer, Inverting |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 20-SOIC |
