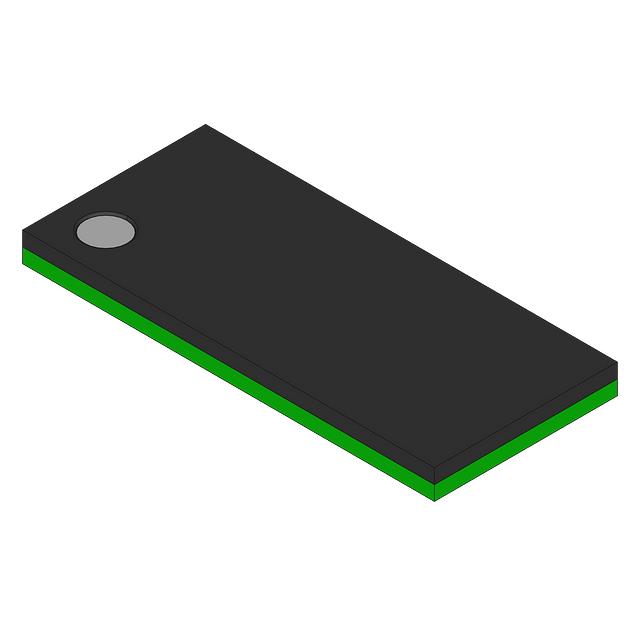

SN74AVCH24T245GRGR
IC TRANSLATION TXRX 3.6V 83BGAManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN74AVCH24T245GRGR, a 6-element, 4-bit per element translation transceiver, offers 3-state outputs and operates across a 1.2V to 3.6V supply range. This device features 12mA drive capability for both high and low outputs. Supplied in an 83-BGA MICROSTAR JUNIOR (10x4.5) package, it is suitable for surface-mount applications. The 74AVCH series transceiver is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment requiring flexible voltage translation and high-speed signal integrity. The component is delivered on tape and reel (TR).
Additional Information
Series: 74AVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 83-VFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 6 |
| Logic Type | Translation Transceiver |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 83-BGA MICROSTAR JUNIOR (10x4.5) |
