SN74AUC2G240YZPR
IC BUFFER INVERT 2.7V 8DSBGAManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN74AUC2G240YZPR is a dual, 2-bit, low-voltage CMOS buffer/line driver featuring a 3-state output. This inverting buffer from the 74AUC series operates with a supply voltage range of 0.8V to 2.7V, supporting efficient power management in advanced designs. Each buffer element is designed for a single bit with a 3-state output, allowing for bus contention resolution. The device offers a consistent output drive of 9mA for both high and low states. Its compact 8-DSBGA (8-XFBGA, DSBGA) package is ideal for space-constrained applications such as portable electronics, mobile infrastructure, and automotive systems where high-density integration is critical. The SN74AUC2G240YZPR is supplied on tape and reel for automated assembly processes. Operating temperature range is -40°C to 85°C.
Additional Information
Series: 74AUCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

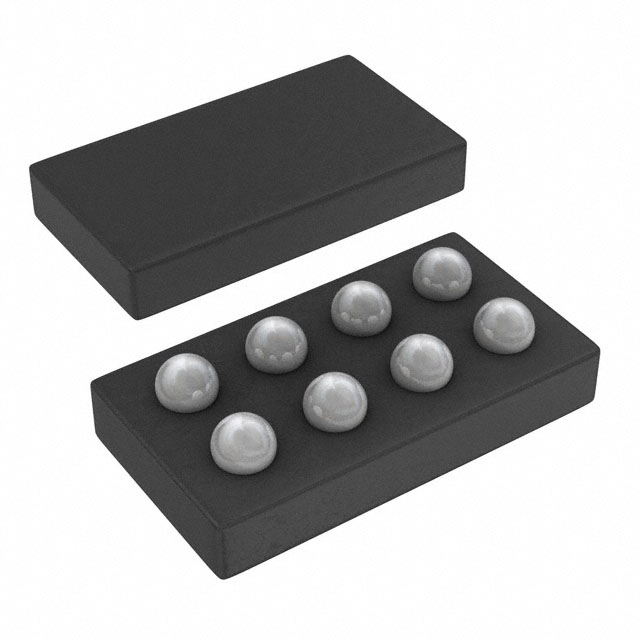

| Package / Case | 8-XFBGA, DSBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Buffer, Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 0.8V ~ 2.7V |
| Input Type | - |
| Number of Bits per Element | 1 |
| Current - Output High, Low | 9mA, 9mA |
| Supplier Device Package | 8-DSBGA |
