SN74AUC1G125YZTR
IC BUFFER NON-INVERT 2.7V 5DSBGAManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More

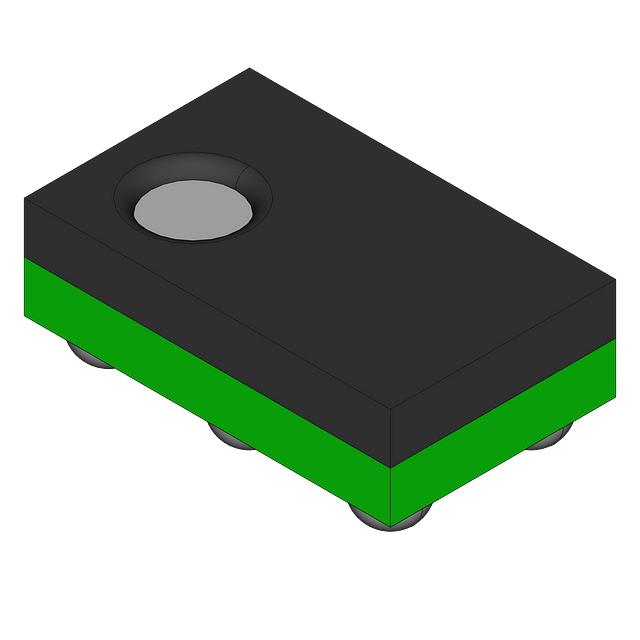

Texas Instruments SN74AUC1G125YZTR is a single, non-inverting buffer with a 3-state output. As part of the 74AUC series, this component operates with a wide supply voltage range from 0.8V to 2.7V, facilitating integration into low-voltage systems. The device features a 5-DSBGA package, suitable for space-constrained applications. Its 3-state output capability allows for effective bus interfacing. The SN74AUC1G125YZTR is engineered for high-performance digital applications, commonly found in portable electronics, automotive systems, and industrial control. The component's specifications include a typical output current of 9mA for both high and low states, and it operates within an ambient temperature range of -40°C to 85°C. This buffer is supplied in a tape and reel package.
Additional Information
Series: 74AUCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, DSBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 0.8V ~ 2.7V |
| Input Type | - |
| Number of Bits per Element | 1 |
| Current - Output High, Low | 9mA, 9mA |
| Supplier Device Package | 5-DSBGA |
