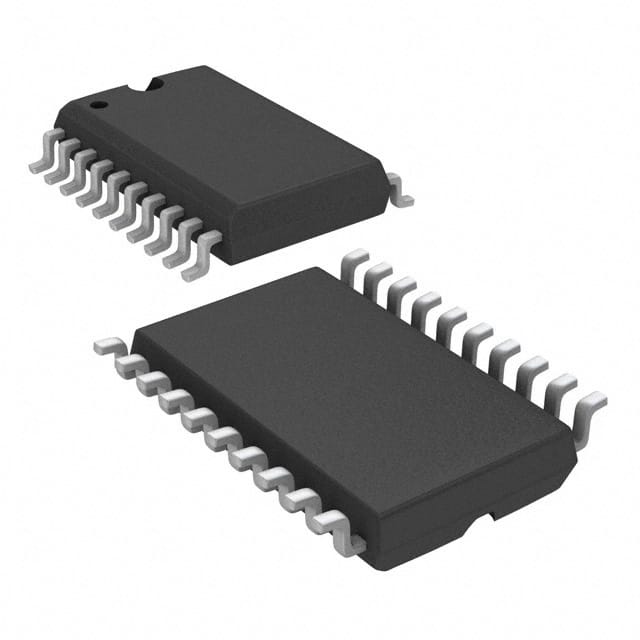

SN74ALS620ADWG4
IC TXRX INVERT 5.5V 20SOICManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments 74ALS Series SN74ALS620ADWG4 is an inverting octal transceiver featuring 3-state outputs. This component, housed in a 20-SOIC package, operates with a supply voltage range of 4.5V to 5.5V and supports an output current capability of 15mA high and 24mA low. Designed for robust performance, it finds application in industrial automation, telecommunications infrastructure, and advanced computing systems. The device is configured as a single 8-bit element, providing efficient signal buffering and transmission. Its surface mount capability facilitates integration into high-density printed circuit boards. The operating temperature range is specified as 0°C to 70°C (TA).
Additional Information
Series: 74ALSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Transceiver, Inverting |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 15mA, 24mA |
| Supplier Device Package | 20-SOIC |
