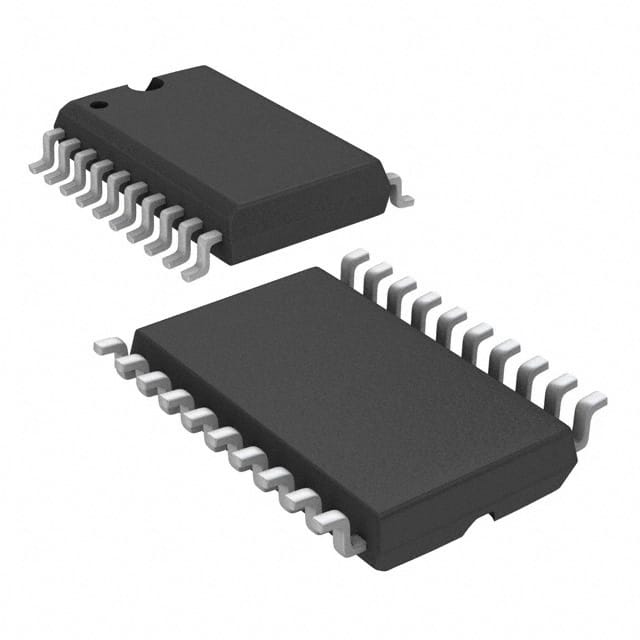

SN64BCT757DW
IC BUF NON-INVERT 5.5V 20SOICManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments 64BCT series SN64BCT757DW is a non-inverting buffer with open collector outputs. This 20-SOIC package houses two 4-bit elements, providing a total of eight buffer channels. Designed for operation within a 4.5V to 5.5V supply range, each output can sink up to 64mA. Its open collector nature allows for wired-AND logic configurations and requires external pull-up resistors. The SN64BCT757DW is suitable for applications in industrial automation, telecommunications infrastructure, and computing systems where robust buffering and specific output characteristics are required. Operating temperature range is -40°C to 85°C.
Additional Information
Series: 64BCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Open Collector |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | -, 64mA |
| Supplier Device Package | 20-SOIC |
