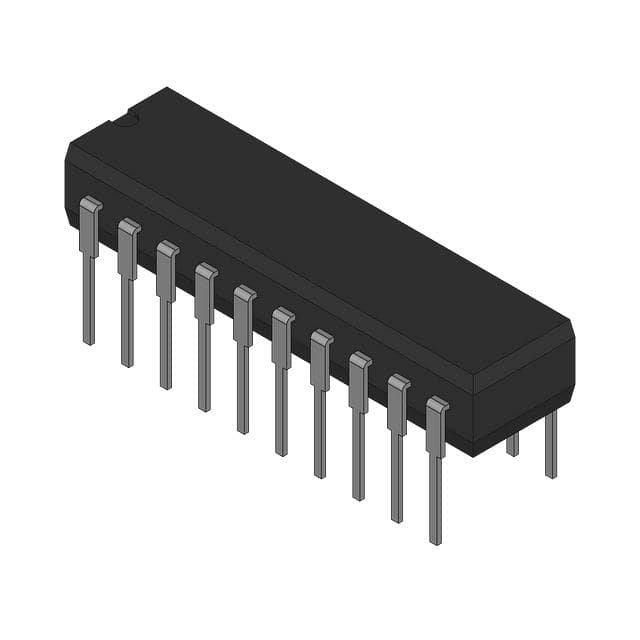

SN54S244J
54S244 OCTAL BUFFERS AND LINE DRManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-CDIP
Additional Information
Series: 54SRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Schmitt Trigger |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 48mA |
| Supplier Device Package | 20-CDIP |
Request a Quote
