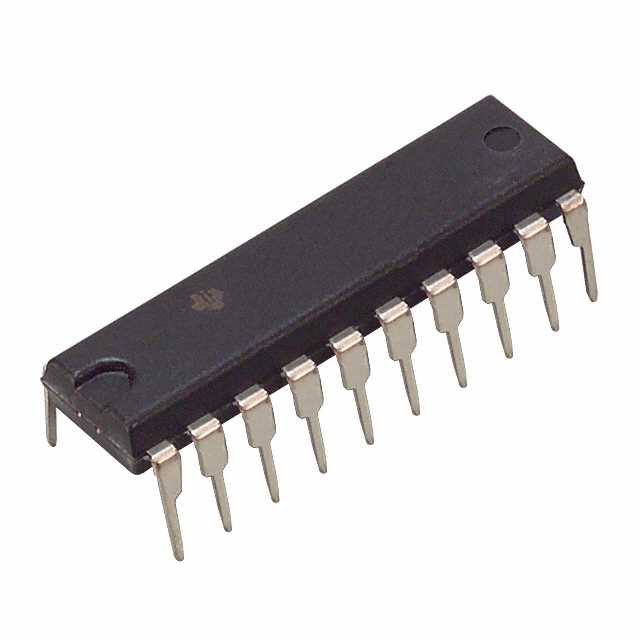

CD74HC245E
IC TXRX NON-INVERT 6V 20DIPManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments' CD74HC245E is an octal non-inverting transceiver from the 74HC series. This component features an 8-bit bidirectional data flow with 3-state outputs, designed for high-speed operation with low power consumption. It supports a supply voltage range of 2V to 6V. The device is housed in a 20-DIP (0.300", 7.62mm) package suitable for through-hole mounting, operating across an industrial temperature range of -55°C to 125°C. The CD74HC245E is commonly utilized in digital logic systems, data communication interfaces, and control circuitry across various industrial applications, including consumer electronics and automotive systems. Its output drive capability is rated at 5.2mA for both high and low states.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Supplier Device Package | 20-PDIP |
