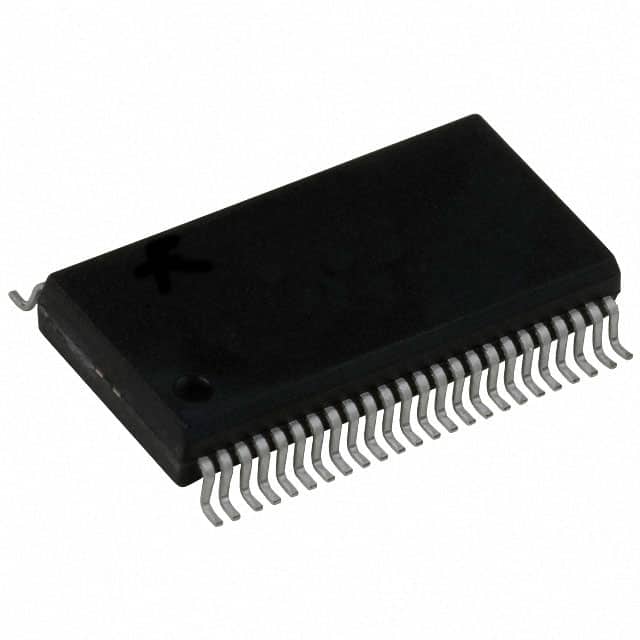

74ACT16244DGG
IC BUFF NON-INVERT 5.5V 48TSSOPManufacturer: Texas Instruments
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments 74ACT16244DGG is a high-speed CMOS buffer with a 3-state output, featuring four independent 4-bit non-inverting buffer elements. This component operates from a 4.5V to 5.5V supply voltage range and delivers robust output drive capability with 24mA current at both high and low levels. The 48-TSSOP package facilitates surface mounting for efficient board layout. Designed for applications requiring rapid signal propagation and high fan-out, the 74ACT series is commonly utilized in telecommunications, industrial automation, and computing systems. Its 3-state capability allows for bus contention management and flexible system design.
Additional Information
Series: 74ACTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 48-TSSOP |
