74V2G08STR
IC GATE AND 2CH 2-INP SOT23-8Manufacturer: STMicroelectronics
Categories: Gates and Inverters
Quality Control: Learn More

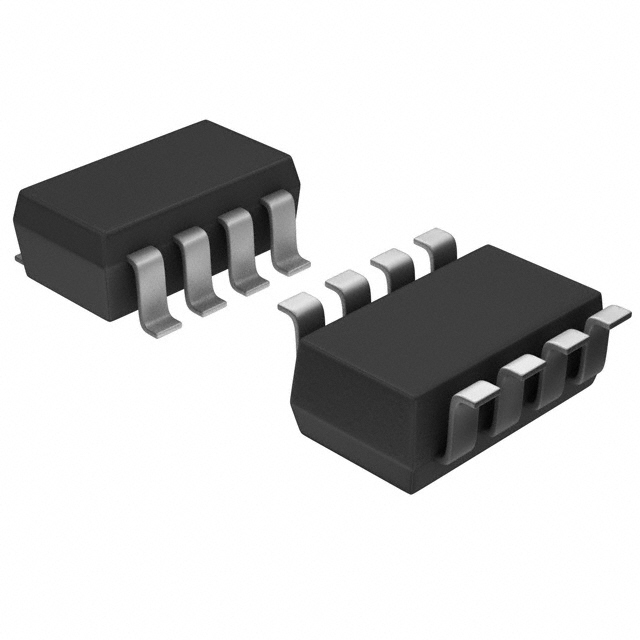

STMicroelectronics 74V2G08STR is a dual 2-input AND gate IC from the 74V series, supplied in a SOT-23-8 package. This device features two independent AND gates, each with two inputs. It operates over a wide supply voltage range of 2V to 5.5V, with typical propagation delay of 7ns at 5V and 50pF load. The component exhibits low quiescent current of 1 µA (max) and supports output currents of 8mA high and 8mA low. Input logic levels are specified at 0.5V for low and 1.5V for high. The 74V2G08STR is suitable for applications in industrial automation, consumer electronics, and automotive systems. This component is available in Tape & Reel packaging.
Additional Information
Series: 74VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | SOT-23-8 |
| Input Logic Level - High | 1.5V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 1 µA |
