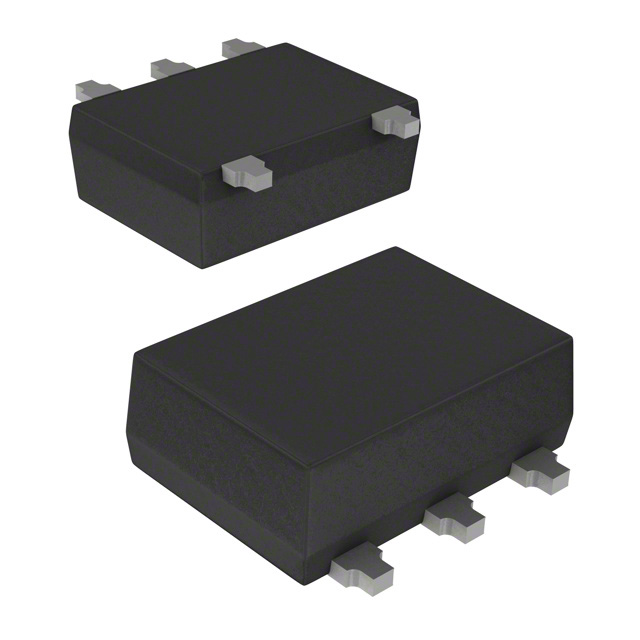

74AUP1G04GTR
IC INVERTER 1CH 1-INP SOT665Manufacturer: STMicroelectronics
Categories: Gates and Inverters
Quality Control: Learn More
STMicroelectronics 74AUP Series inverter, part number 74AUP1G04GTR, is a single-channel, 1-input CMOS logic gate. This SOT-665 surface-mount device features a low quiescent current of 100 nA and a high-speed propagation delay of 3.8 ns at 3.3V with a 30 pF load. It operates across a wide supply voltage range of 1.2V to 3.6V, with input logic levels specified from 0.7V to 0.8V for low and 1.6V to 2V for high. The output current capability is 10mA for both high and low states. This component is suitable for applications in consumer electronics, industrial automation, and telecommunications. Packaged in a Tape & Reel (TR).
Additional Information
Series: 74AUPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-665 |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.2V ~ 3.6V |
| Current - Output High, Low | 10mA, 10mA |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-665 |
| Input Logic Level - High | 1.6V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 3.8ns @ 3.3V, 30pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 100 nA |
