M74HC377B1R

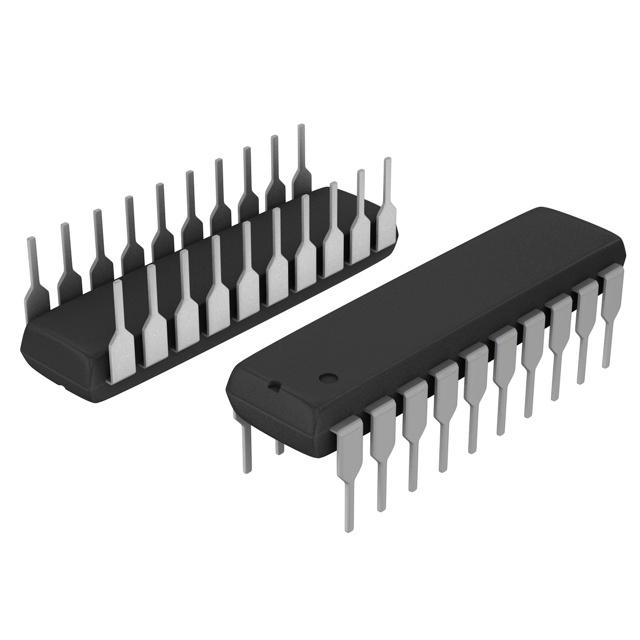

IC FF D-TYPE SNGL 8BIT 20DIPManufacturer: STMicroelectronics
Categories: Flip Flops
Quality Control: Learn More
STMicroelectronics M74HC377B1R is an 8-bit, single D-type flip-flop from the 74HC series. This component features positive edge triggering and provides non-inverted outputs. Designed for through-hole mounting in a 20-DIP package, it operates over a supply voltage range of 2V to 6V. Key specifications include a maximum clock frequency of 66 MHz and a quiescent current of 4 µA. Output drive capability is rated at 5.2mA for both high and low states. Propagation delay at 6V and 50pF is 24ns, with an input capacitance of 5 pF. This device is typically utilized in industrial automation, consumer electronics, and automotive control systems. Operating temperature range is -55°C to 125°C.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Non-Inverted |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 66 MHz |
| Input Capacitance | 5 pF |
| Supplier Device Package | 20-DIP |
| Max Propagation Delay @ V, Max CL | 24ns @ 6V, 50pF |
| Number of Bits per Element | 8 |
