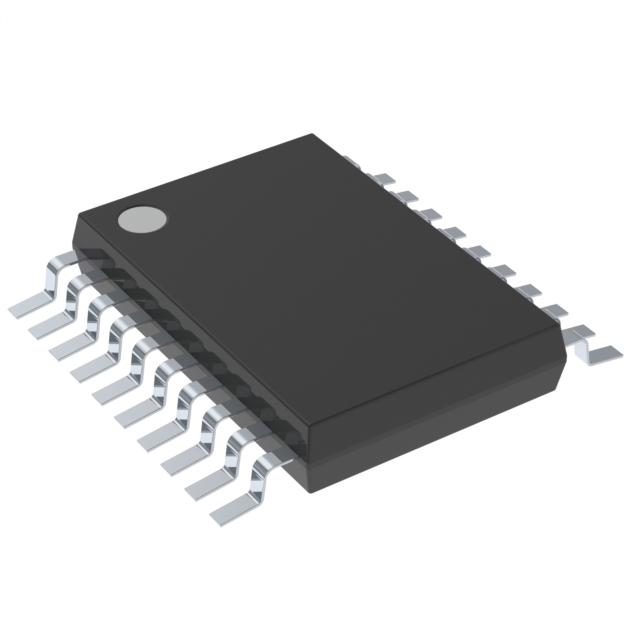

M74HC245TTR
IC TXRX NON-INVERT 6V 20TSSOPManufacturer: STMicroelectronics
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
The STMicroelectronics 74HC series M74HC245TTR is a high-speed CMOS octal non-inverting transceiver with 3-state outputs. This component is designed for bidirectional data transfer and features 8 bits per element across a single element. The device operates within a voltage supply range of 2V to 6V, with output drive capabilities of 7.8mA for both high and low states. Its 20-TSSOP package with a 4.40mm width facilitates surface mounting. This transceiver is suitable for applications in industrial automation, consumer electronics, and telecommunications. The M74HC245TTR is supplied in a Tape & Reel (TR) package for efficient automated assembly. Operating temperature range is -55°C to 125°C.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | 20-TSSOP |
