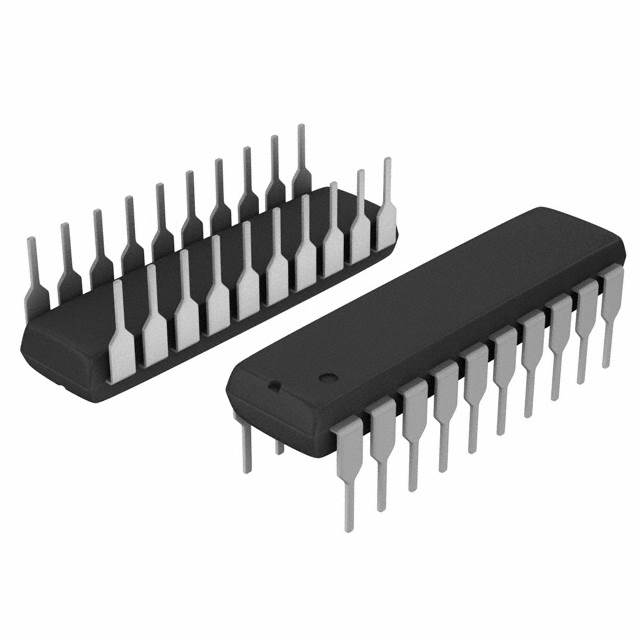

M74HC240B1R
IC BUFFER INVERT 6V 20DIPManufacturer: STMicroelectronics
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
STMicroelectronics 74HC series M74HC240B1R is a high-speed CMOS octal buffer/line driver featuring two 4-bit inverting elements with 3-state outputs. Each element supports 4 bits with 3-state outputs, and the device operates with a supply voltage range of 2V to 6V. This component offers a robust solution for signal buffering and driving in applications requiring precise logic level translation and high fan-out. It is designed for through-hole mounting within a 20-DIP package. The operating temperature range is from -55°C to 125°C. Key electrical specifications include output currents of 7.8mA for both high and low states. This device finds application in industrial automation, consumer electronics, and telecommunications sectors.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Logic Type | Buffer, Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | 20-DIP |
